Vapor Canister: Installation

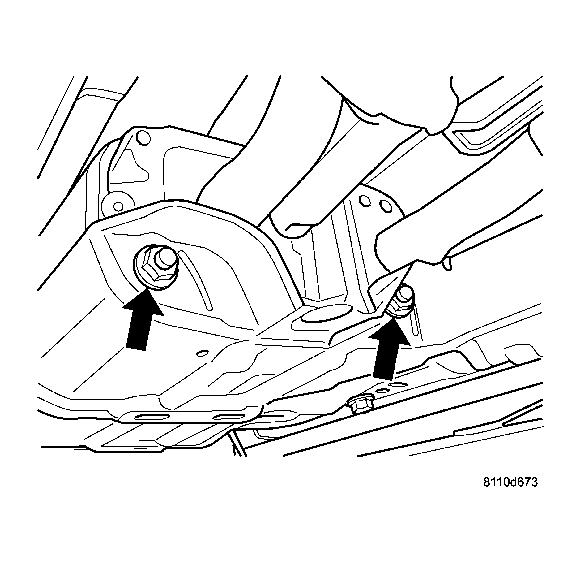

Fig 1: EVAP CANISTER MOUNTING NUTS
GC0001493Courtesy of DAIMLERCHRYSLER CORP.
  1. Install canister into bracket. See Fig 1.
  2. Tighten 2 mounting nuts.
  3. Install inboard screw and tighten all 3 bracket mounting screws.
  4. Connect the EVAP canister hoses.
  5. Lower vehicle.
