Bus Failure Message - Short To 5 Volts

Fig 1: Short To 5 Volts (1 Of 2)

G00059545

Courtesy of DAIMLERCHRYSLER CORPORATION

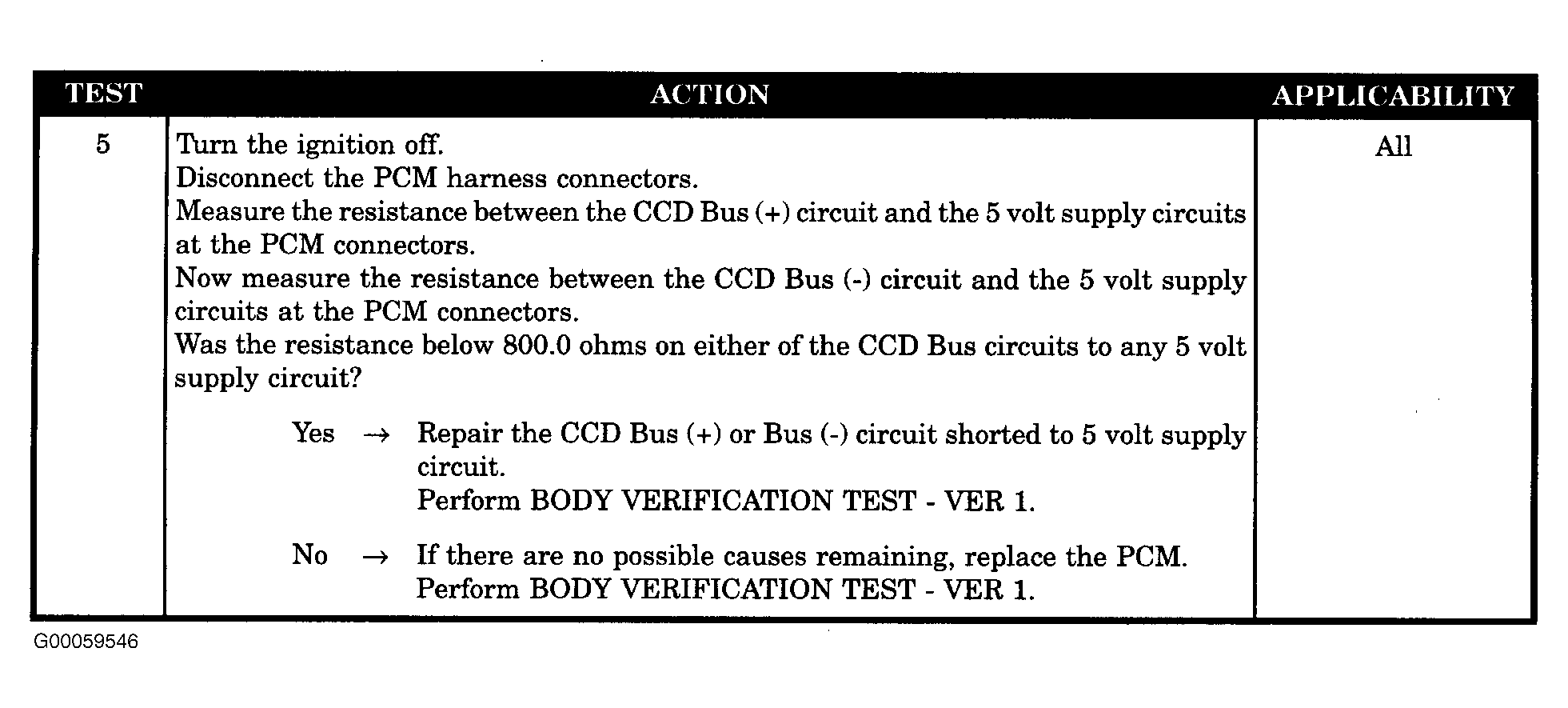

Fig 2: Short To 5 Volts (2 Of 2)

G00059546

Courtesy of DAIMLERCHRYSLER CORPORATION
