Bus Failure Message - Short To Ground

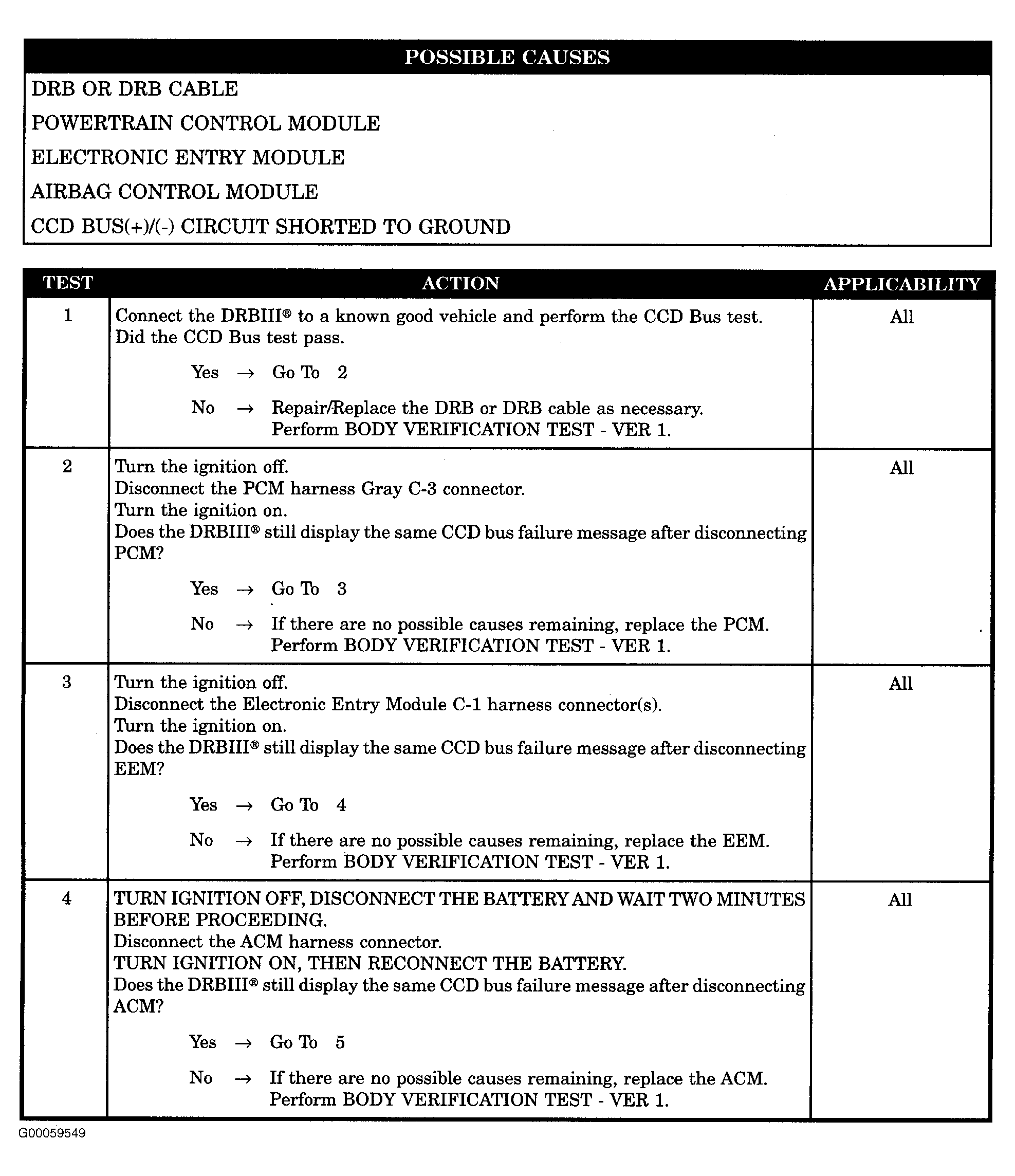

Fig 1: Short To Ground (1 Of 2)

G00059549

Courtesy of DAIMLERCHRYSLER CORPORATION

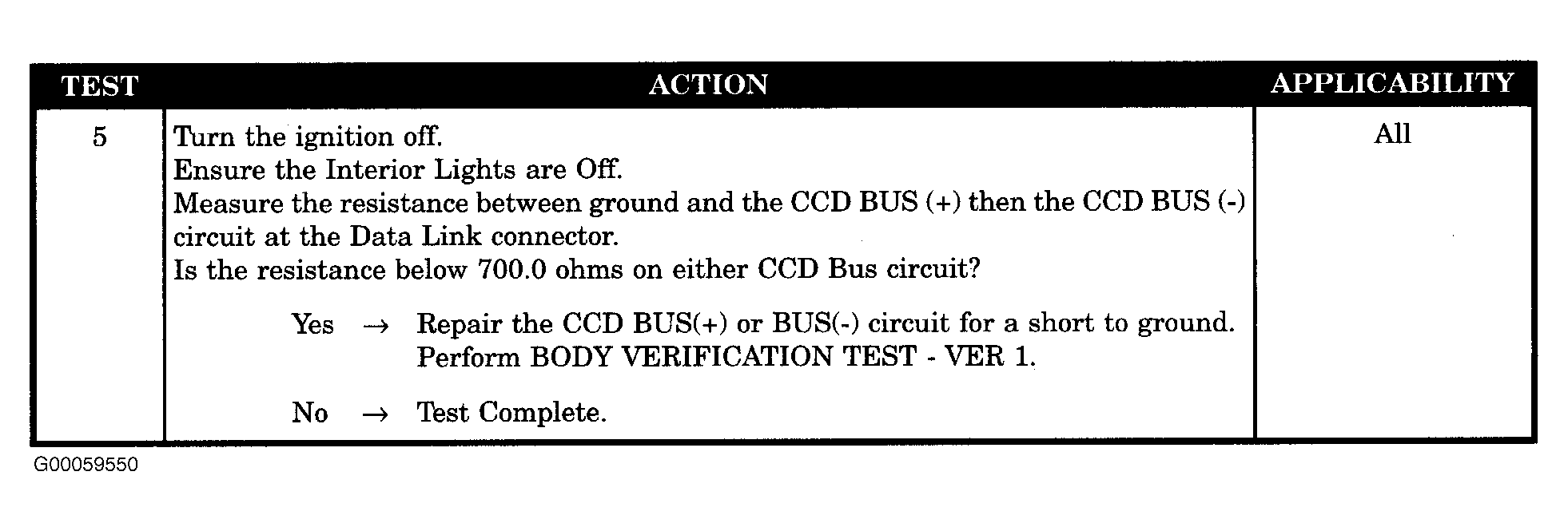

Fig 2: Short To Ground (2 Of 2)

G00059550

Courtesy of DAIMLERCHRYSLER CORPORATION
