Home >> Dodge and Ram >> 2000 >> Viper RT/10 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control Self-Diagnostics >> Symptom Testing >> Engine Cranks Does Not Start

Engine Cranks Does Not Start

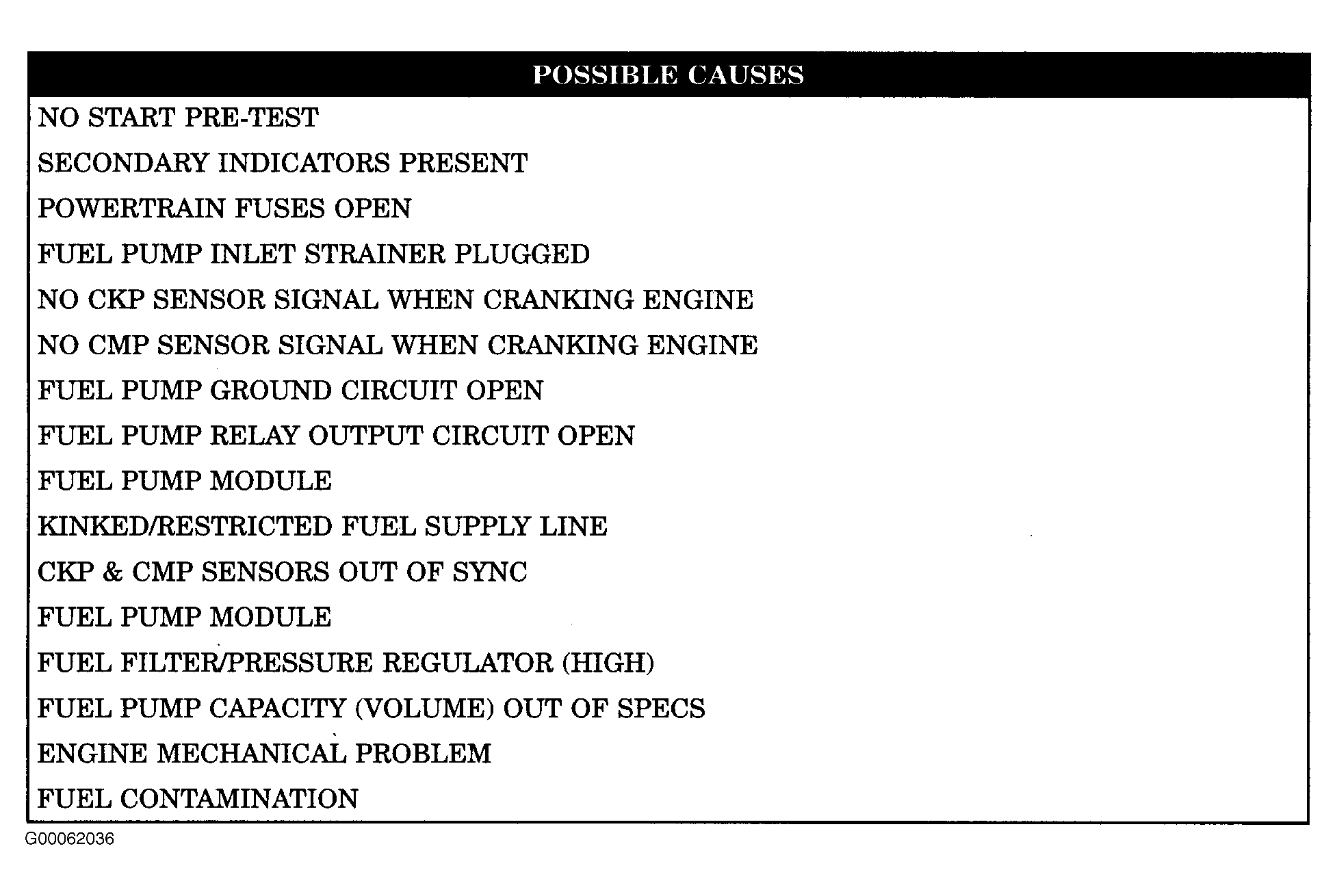

Fig 1: Engine Cranks Does Not Start (1 Of 5)
G00062036Courtesy of DAIMLERCHRYSLER CORPORATION

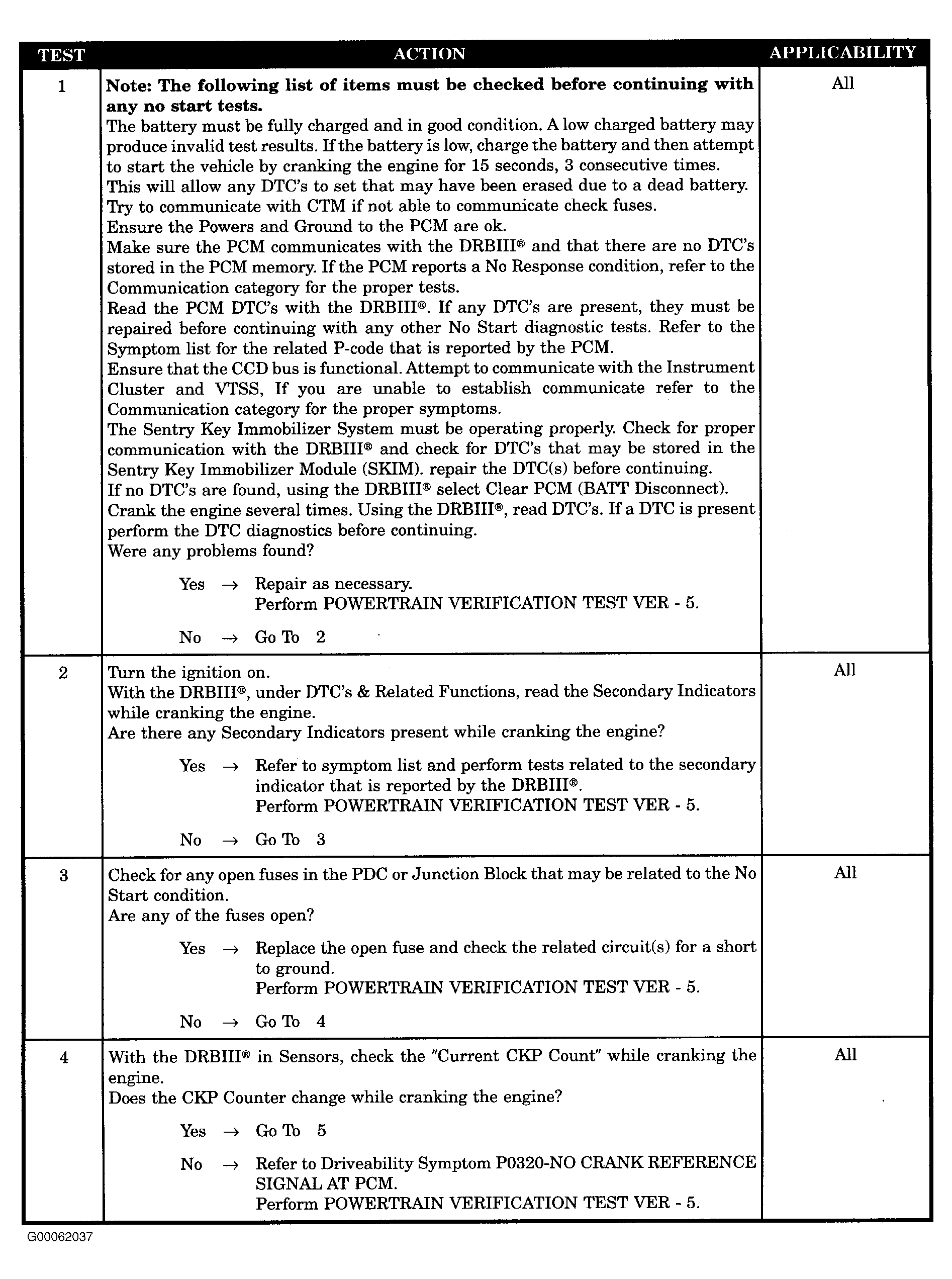

Fig 2: Engine Cranks Does Not Start (2 Of 5)
G00062037Courtesy of DAIMLERCHRYSLER CORPORATION

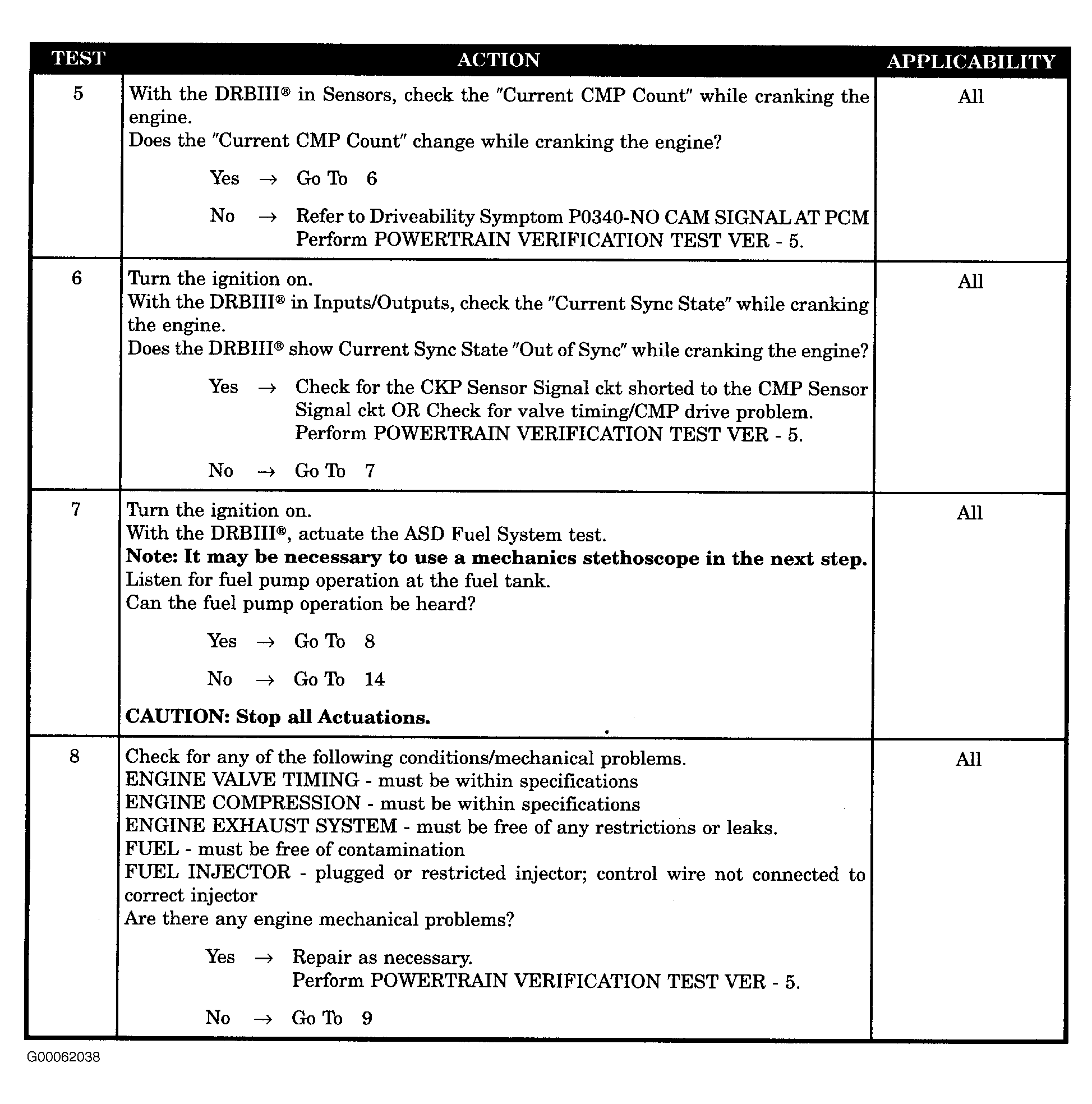

Fig 3: Engine Cranks Does Not Start (3 Of 5)
G00062038Courtesy of DAIMLERCHRYSLER CORPORATION

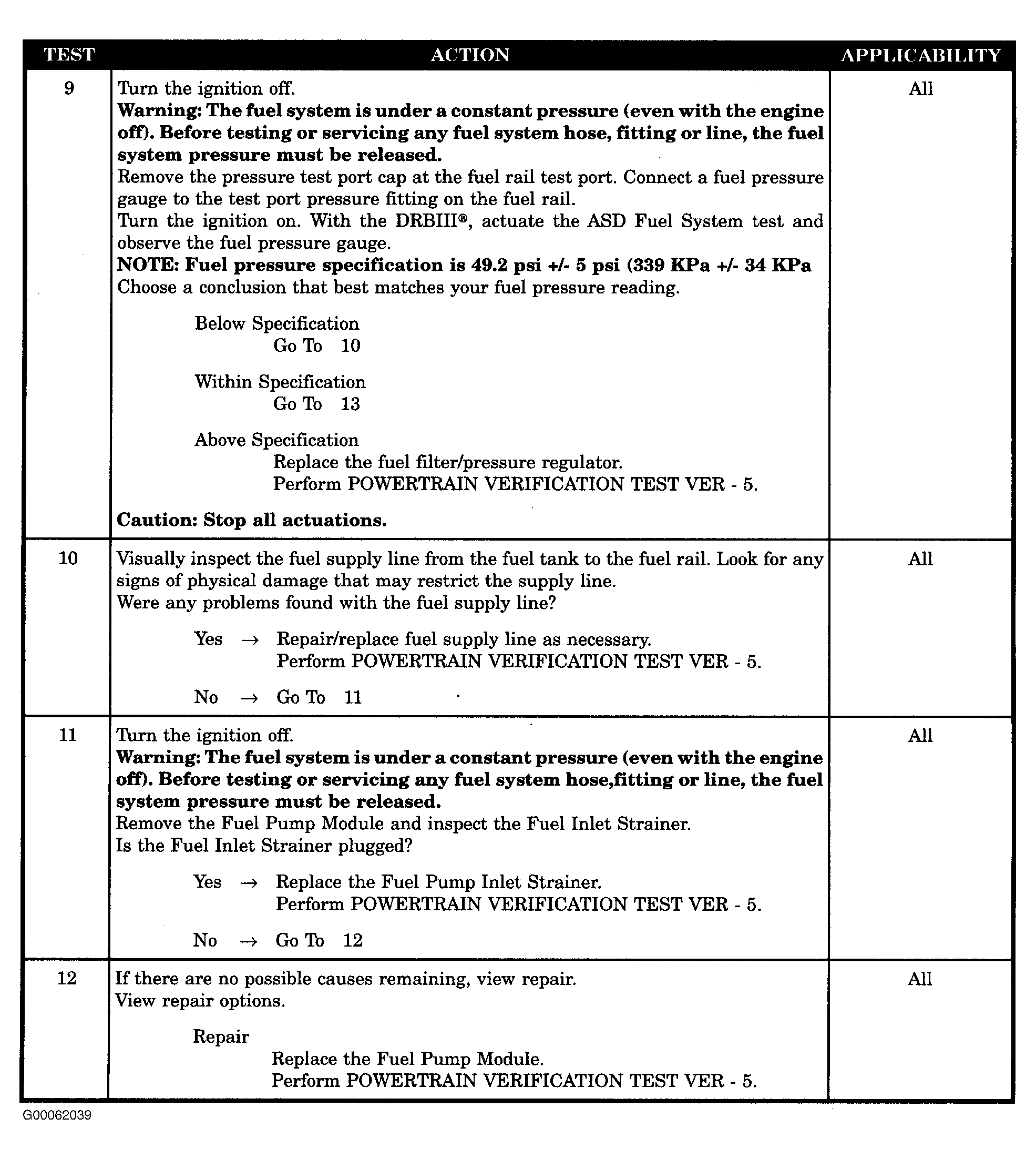

Fig 4: Engine Cranks Does Not Start (4 Of 5)
G00062039Courtesy of DAIMLERCHRYSLER CORPORATION

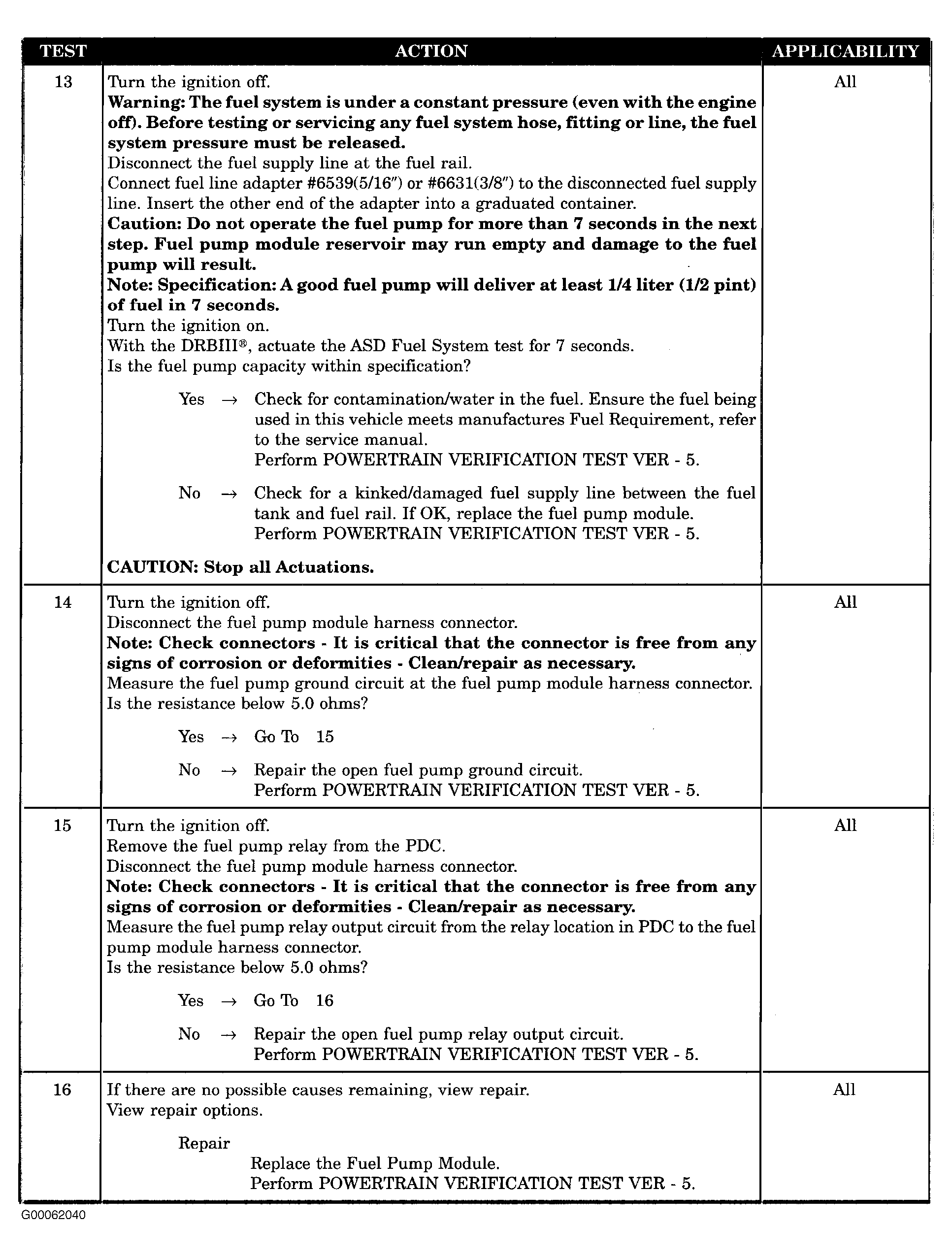

Fig 5: Engine Cranks Does Not Start (5 Of 5)
G00062040Courtesy of DAIMLERCHRYSLER CORPORATION
