Home >> Dodge and Ram >> 2000 >> Viper RT/10 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control Self-Diagnostics >> Symptom Testing >> No Bus Bias

No Bus Bias

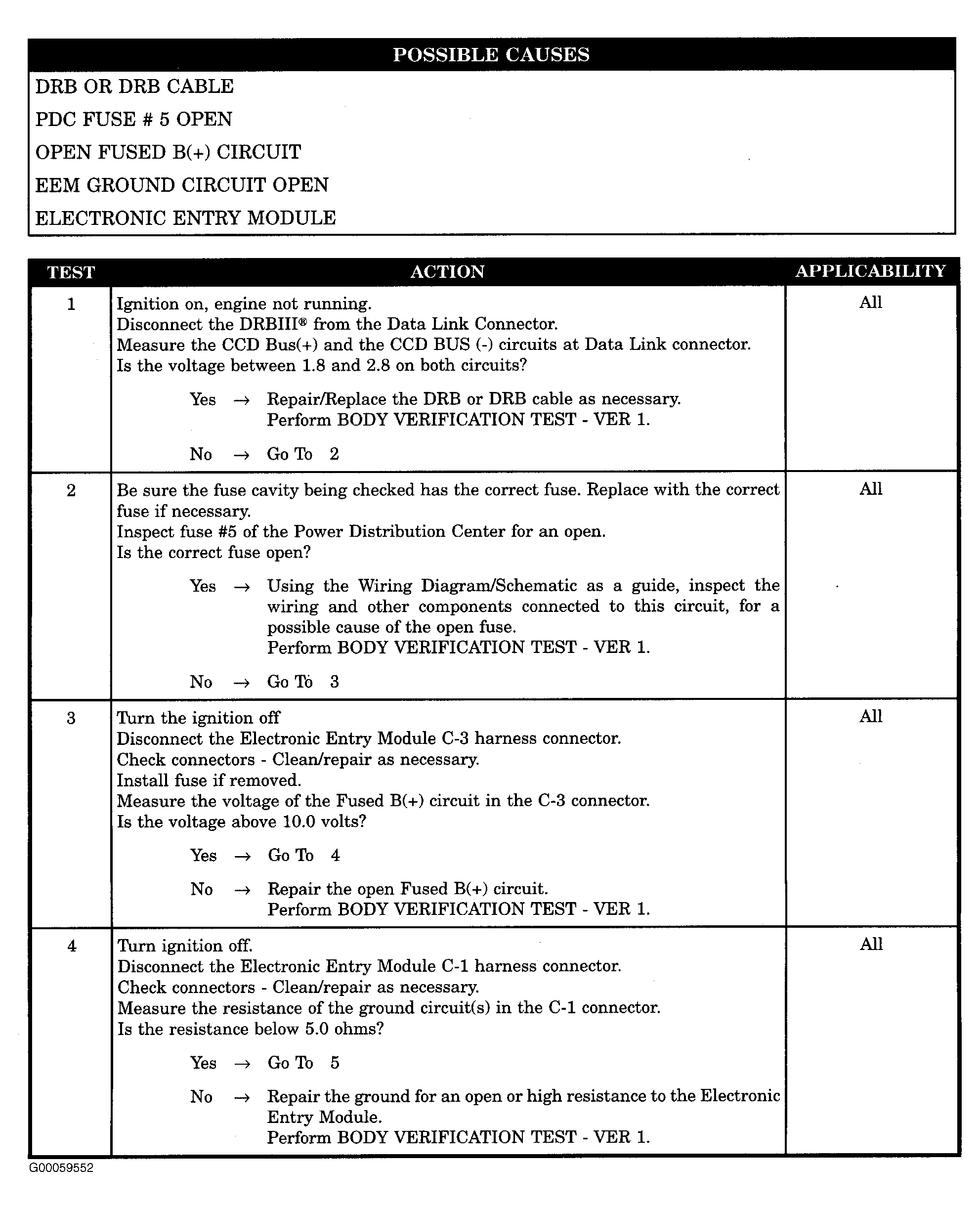

Fig 1: No BUS Bias (1 Of 2)

G00059552

Courtesy of DAIMLERCHRYSLER CORPORATION

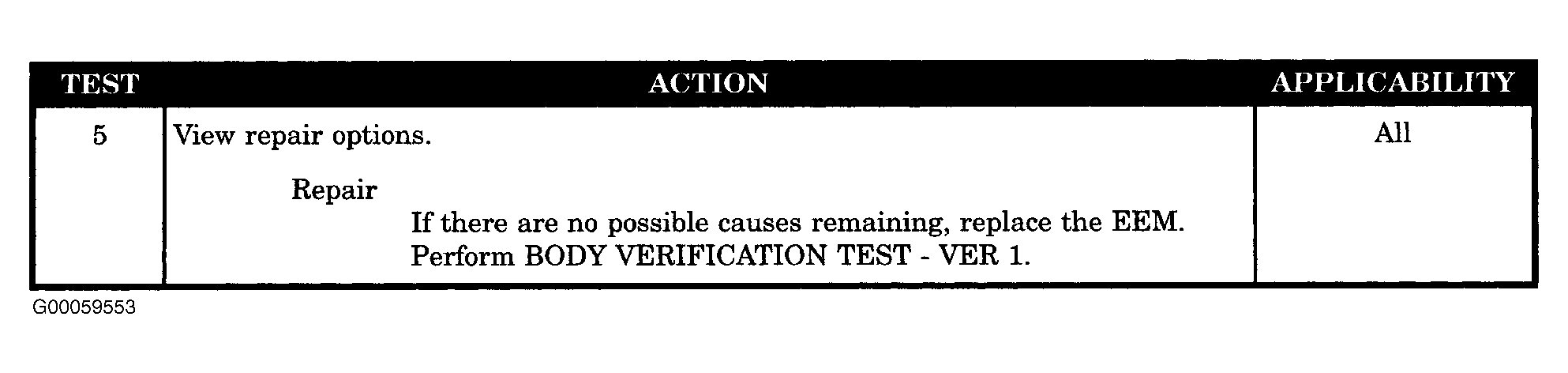

Fig 2: No BUS Bias (2 Of 2)

G00059553

Courtesy of DAIMLERCHRYSLER CORPORATION
