Home >> Dodge and Ram >> 2000 >> Viper RT/10 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control Self-Diagnostics >> Symptom Testing >> No Crank Condition

No Crank Condition

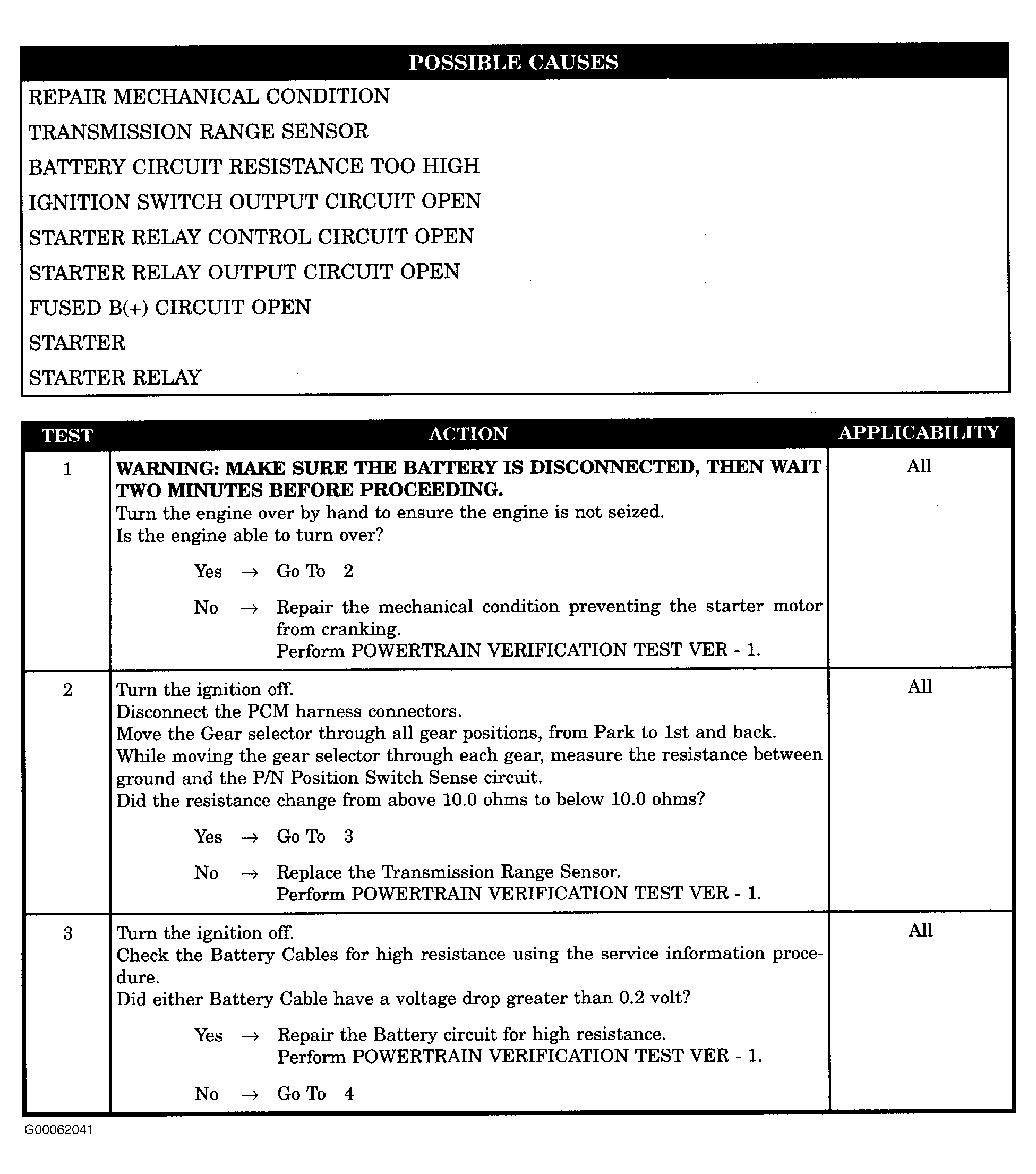

Fig 1: No Crank Condition (1 Of 3)
G00062041Courtesy of DAIMLERCHRYSLER CORPORATION

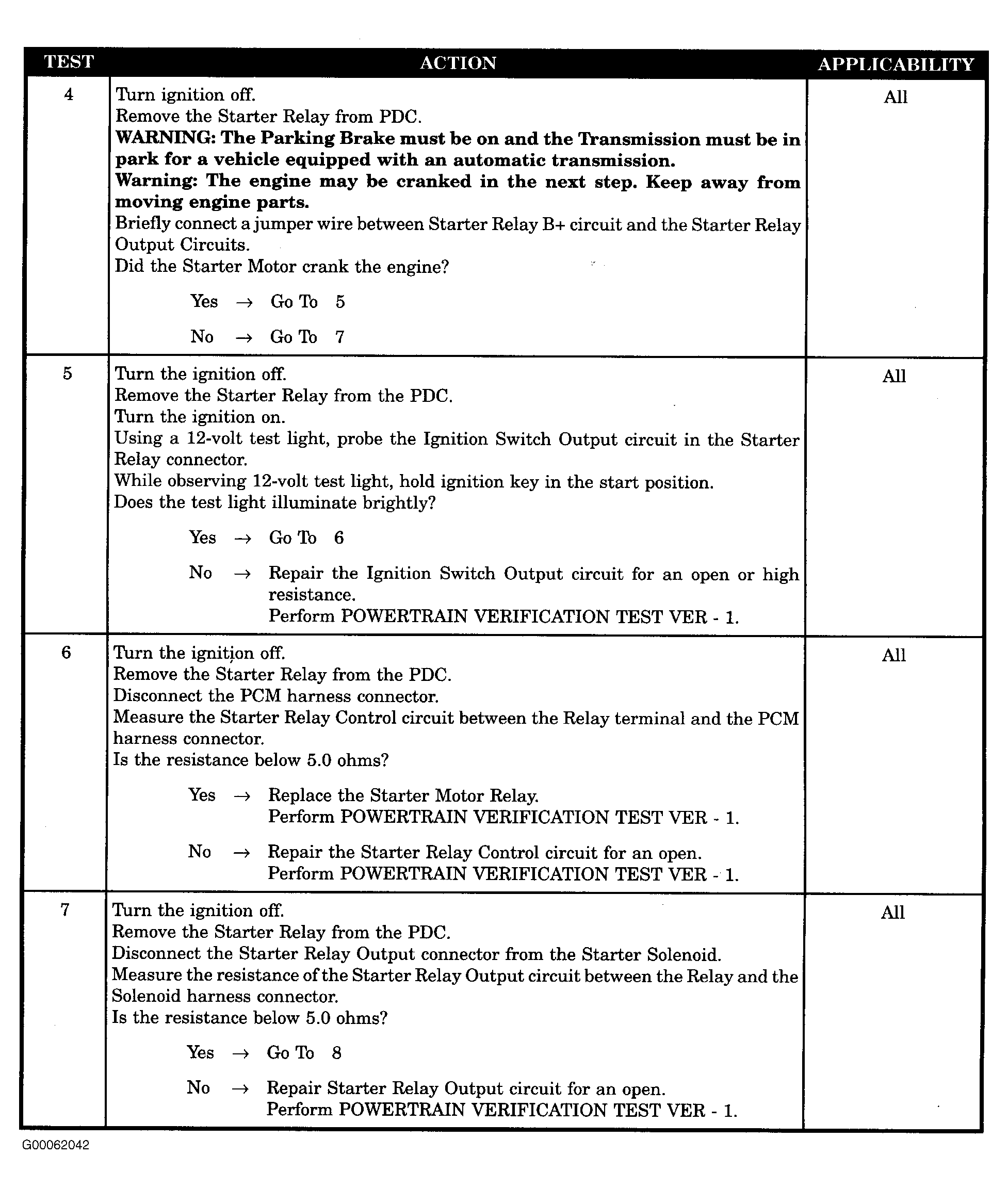

Fig 2: No Crank Condition (2 Of 3)
G00062042Courtesy of DAIMLERCHRYSLER CORPORATION

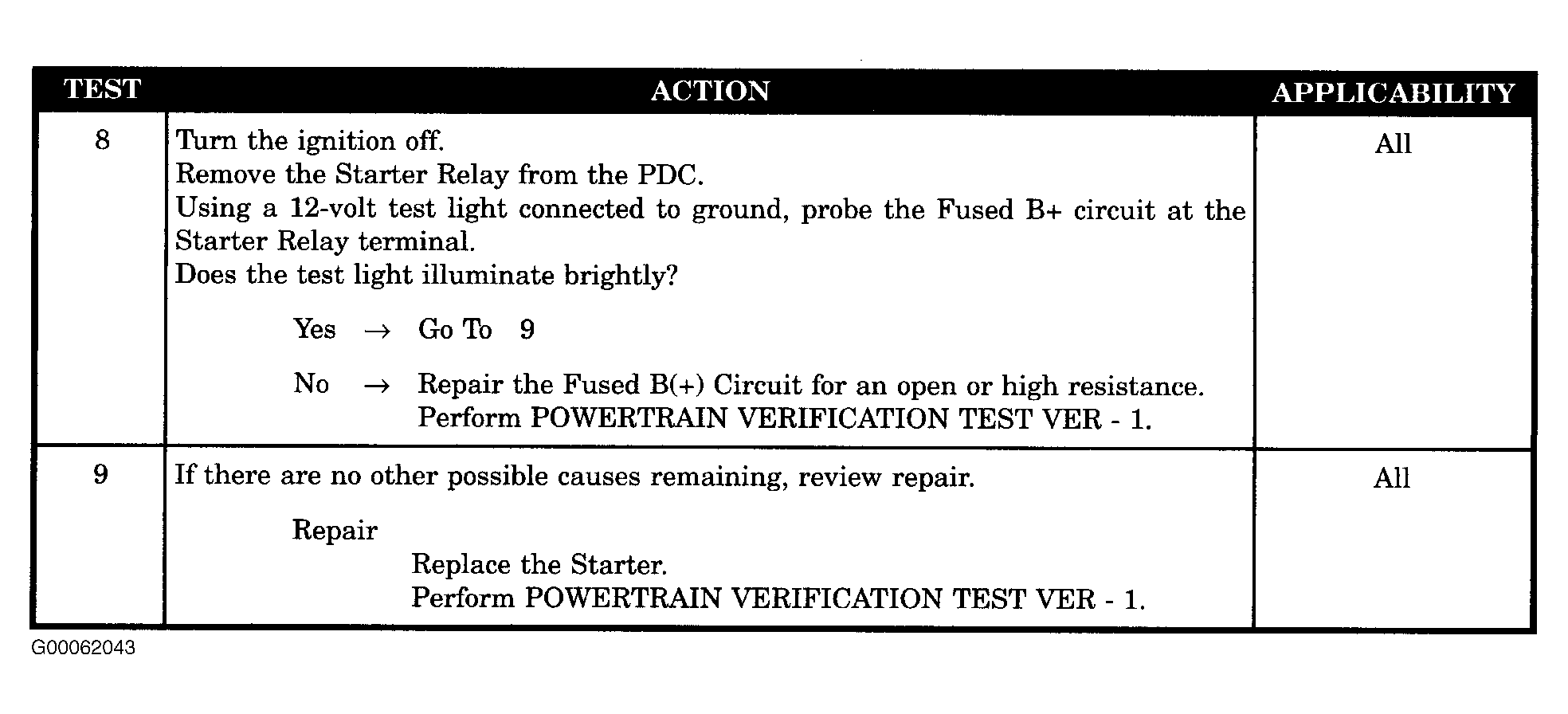

Fig 3: No Crank Condition (3 Of 3)
G00062043Courtesy of DAIMLERCHRYSLER CORPORATION
