No Response From Electronic Entry Module

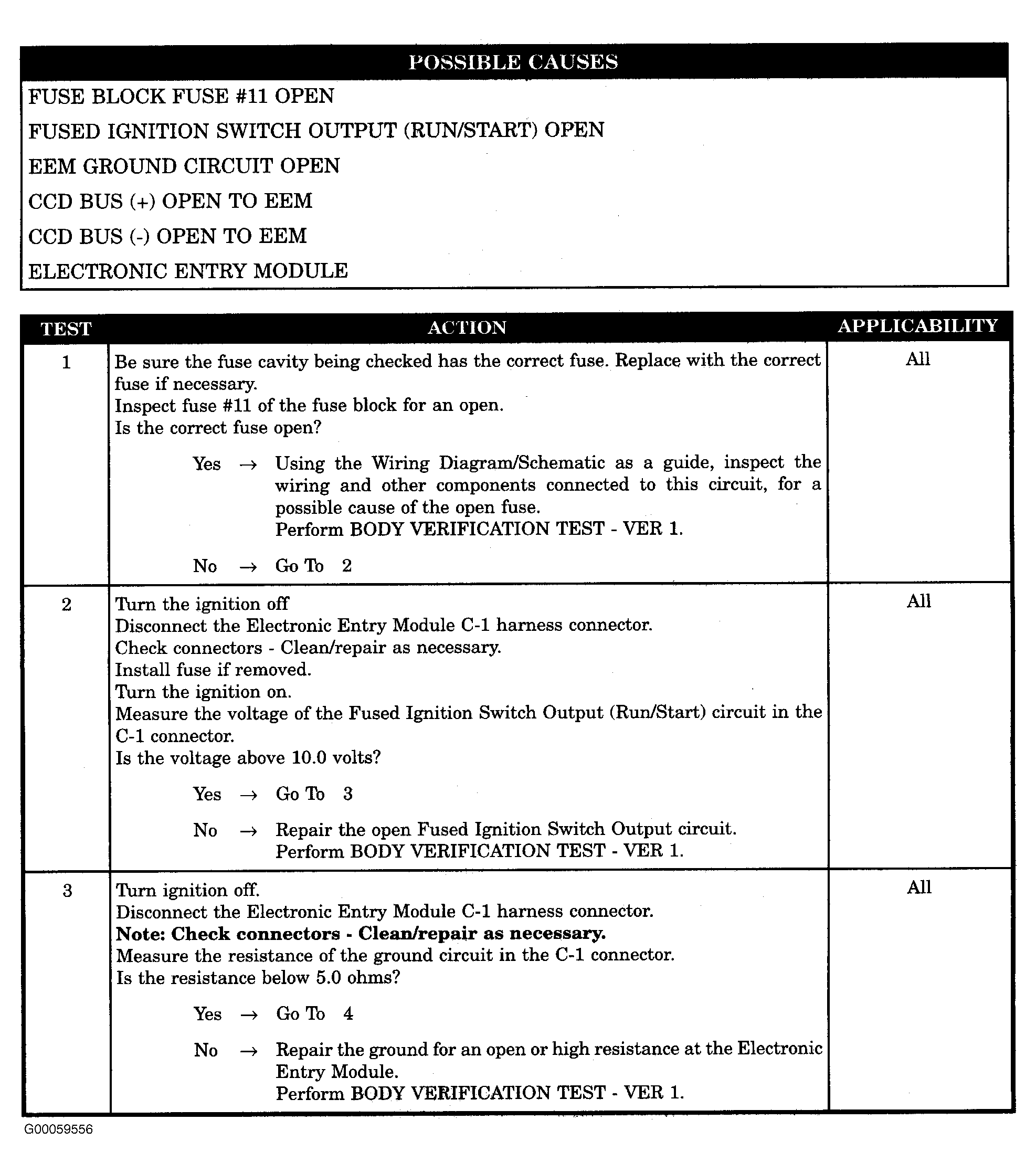

Fig 1: No Response From Electronic Entry Module (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION

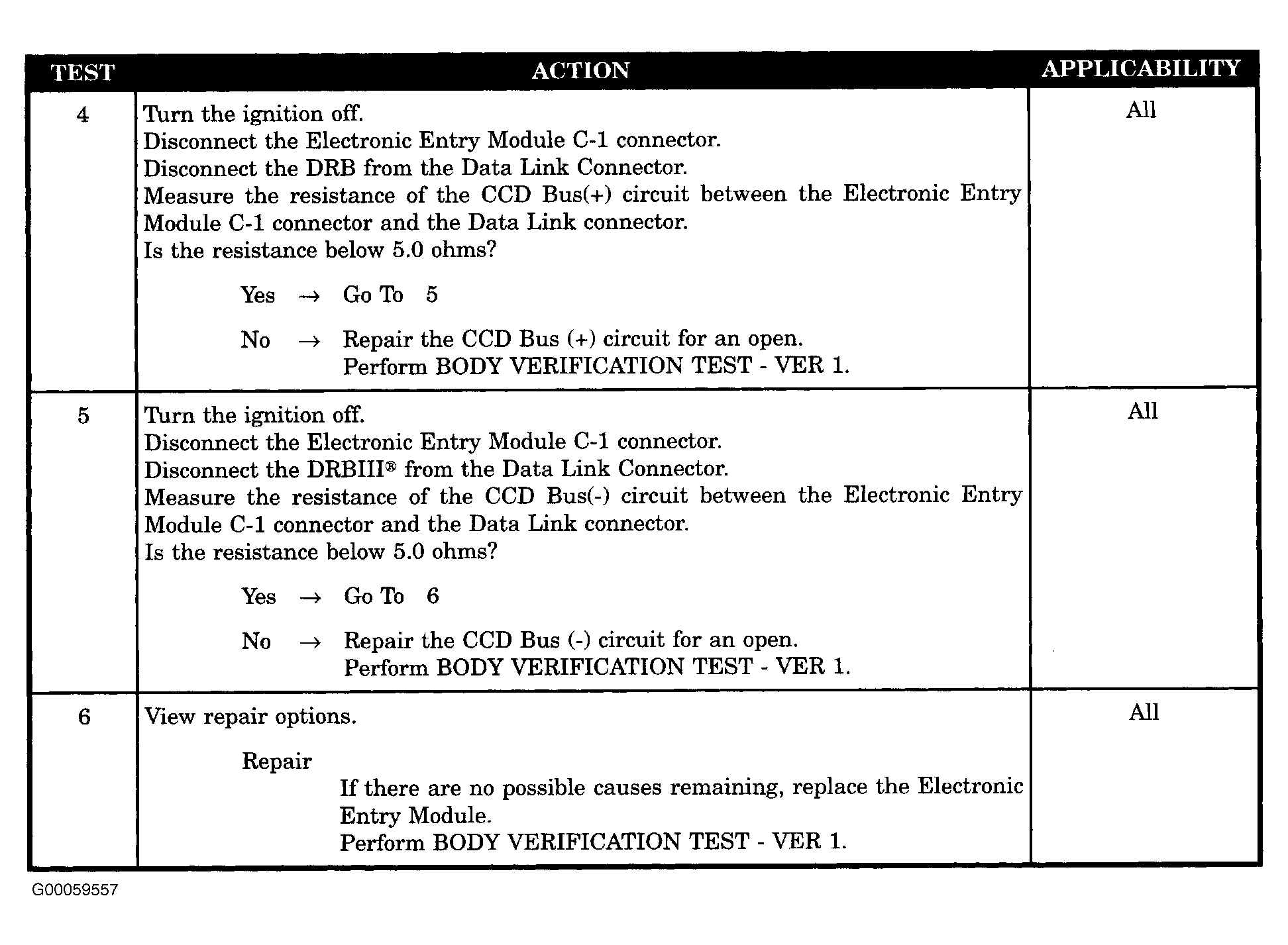

Fig 2: No Response From Electronic Entry Module (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORPORATION
