Home >> Dodge and Ram >> 2000 >> Viper RT/10 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control Self-Diagnostics >> Symptom Testing >> Start & Stall Condition

Start & Stall Condition

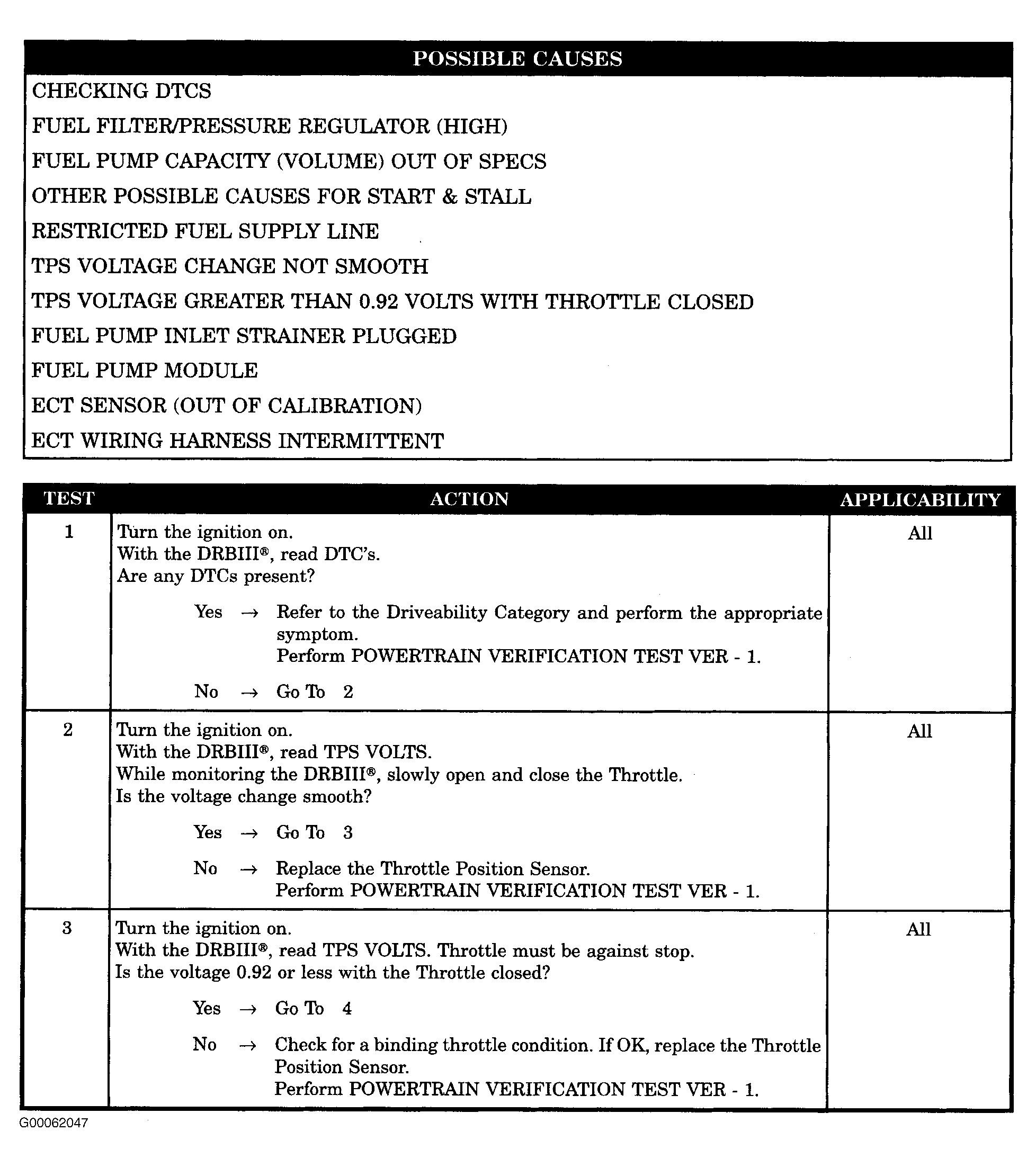

Fig 1: Start & Stall Condition (1 Of 4)
G00062047Courtesy of DAIMLERCHRYSLER CORPORATION
Fig 2: Start & Stall Condition (2 Of 4)
G00062048Courtesy of DAIMLERCHRYSLER CORPORATION

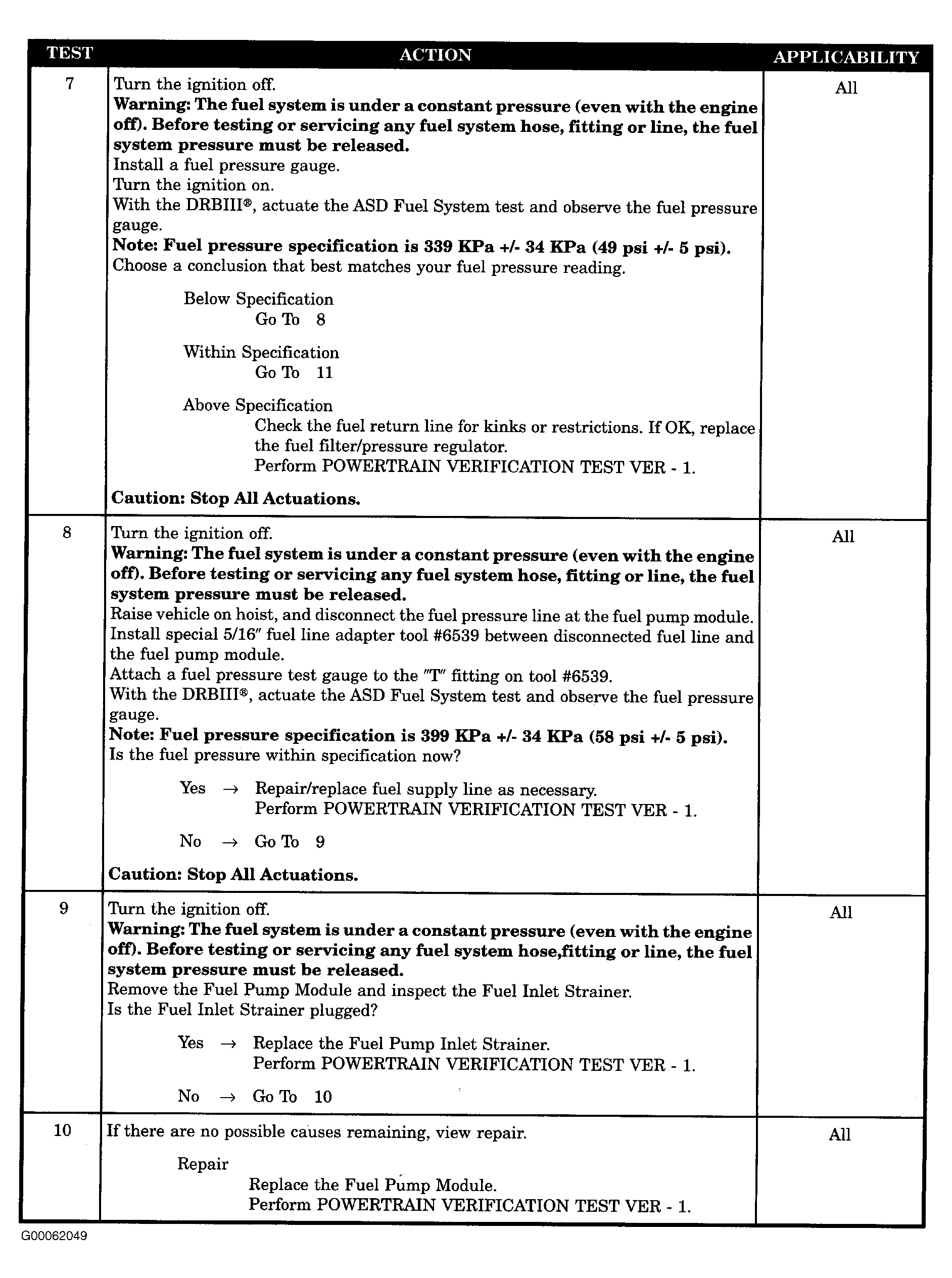

Fig 3: Start & Stall Condition (3 Of 4)
G00062049Courtesy of DAIMLERCHRYSLER CORPORATION

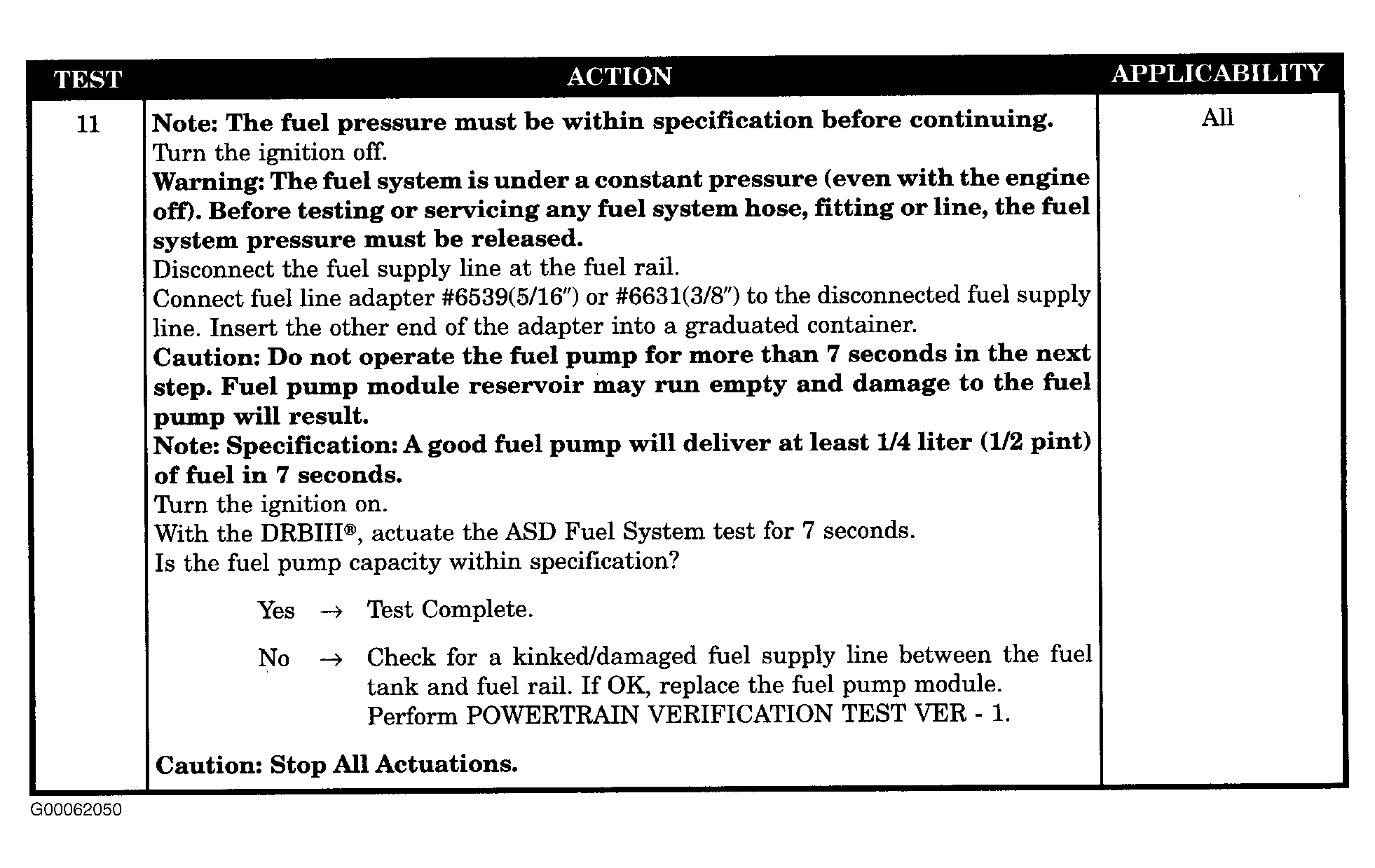

Fig 4: Start & Stall Condition (4 Of 4)
G00062050Courtesy of DAIMLERCHRYSLER CORPORATION
