Controller Antilock Brake: Installation

  1. Connect 24-way wiring connector to CAB and push in connector lock.

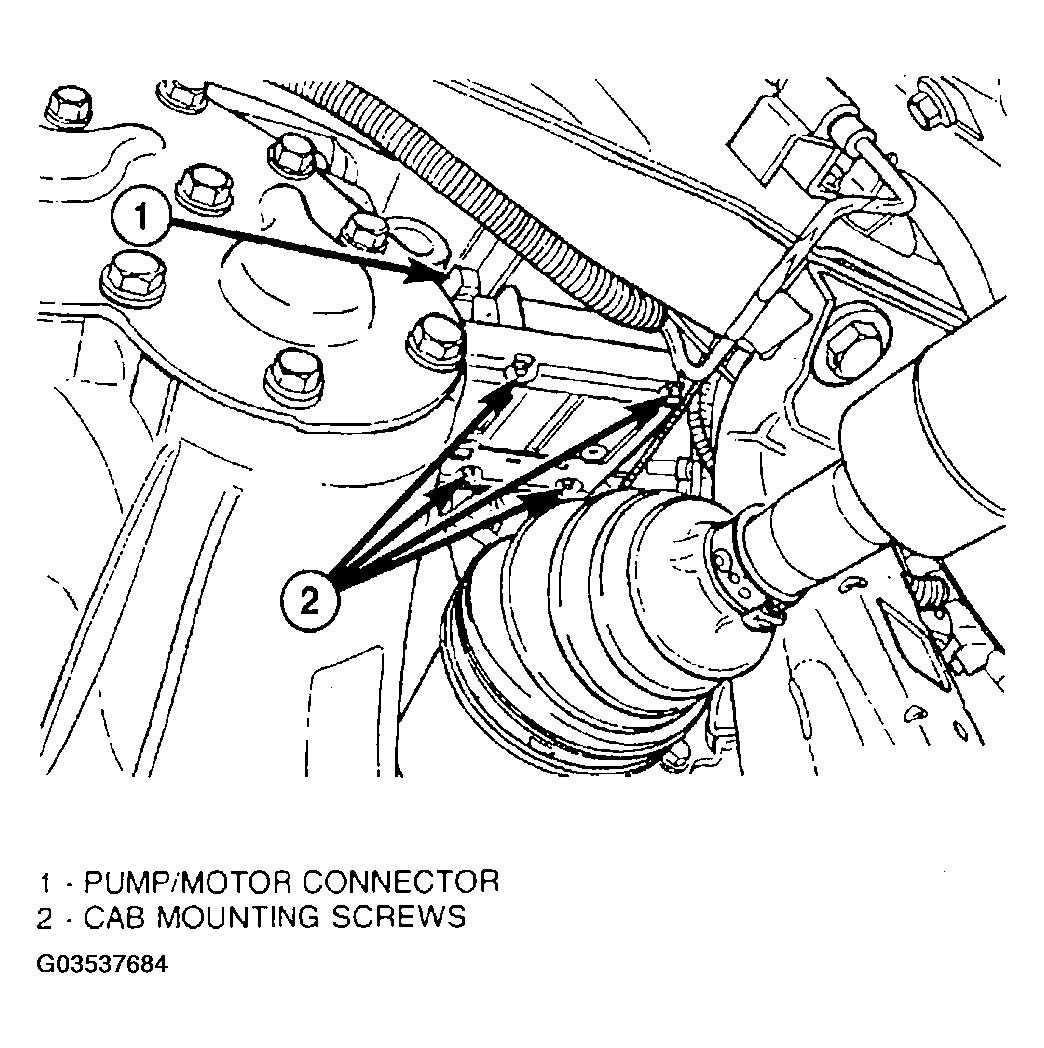

  2. Align CAB with HCU half of ICU, then slide CAB up over HCU valves. Install four CAB mounting screws (Figure). Tighten mounting screws to 2 N.m (17 in. lbs.) torque.
  3. Connect pump/motor connector (Figure).
  4. Lower vehicle.
  5. Connect battery negative cable.
  6. Connect DRBIII®to vehicle to initialize system. Check and clear any faults.
