Ignition Coil: Description

The ignition coil assembly consists of 2 or 3 independent coils molded together or See Fig 1 and Fig 2. The coil assembly for the 3.3/3.8L is mounted on the intake manifold. The coil assembly for the 2.4L is mounted on the cylinder head cover. Spark plug cables route to each cylinder from the coil.

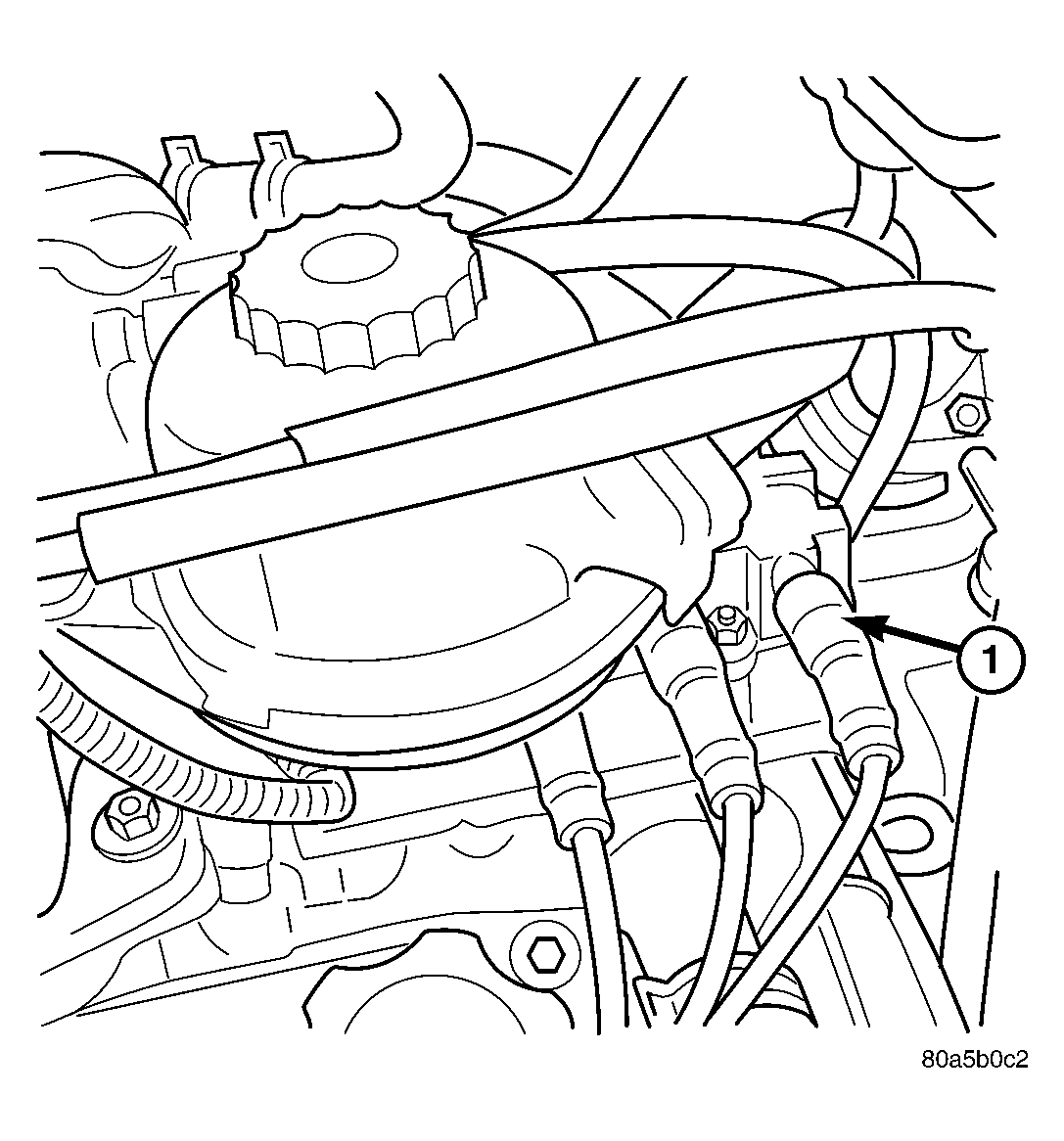

Fig 1: Ignition Coil - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

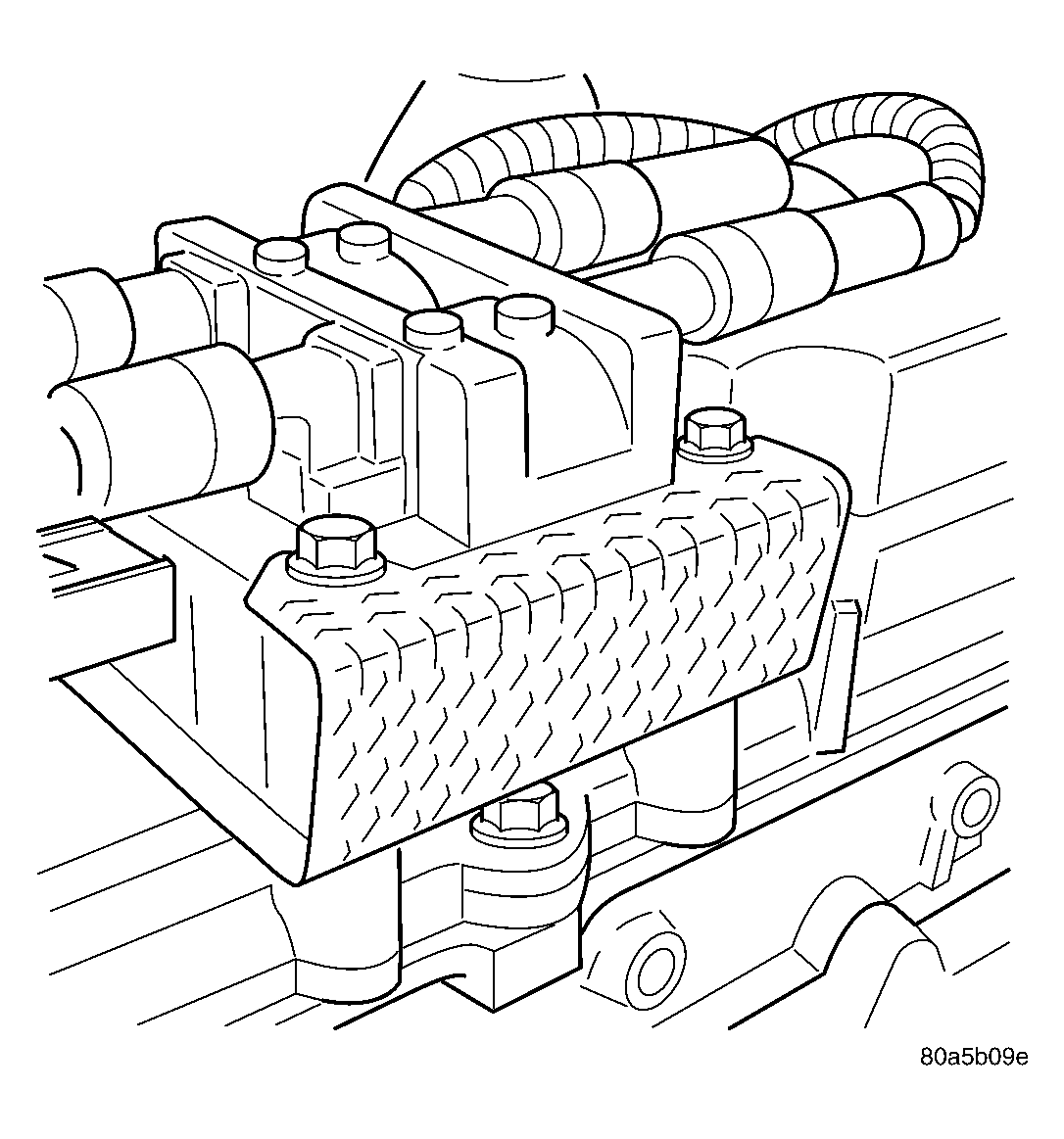

Fig 2: Ignition Coil - 3.3/3.8L

Courtesy of DAIMLERCHRYSLER CORP.
