Firing Order

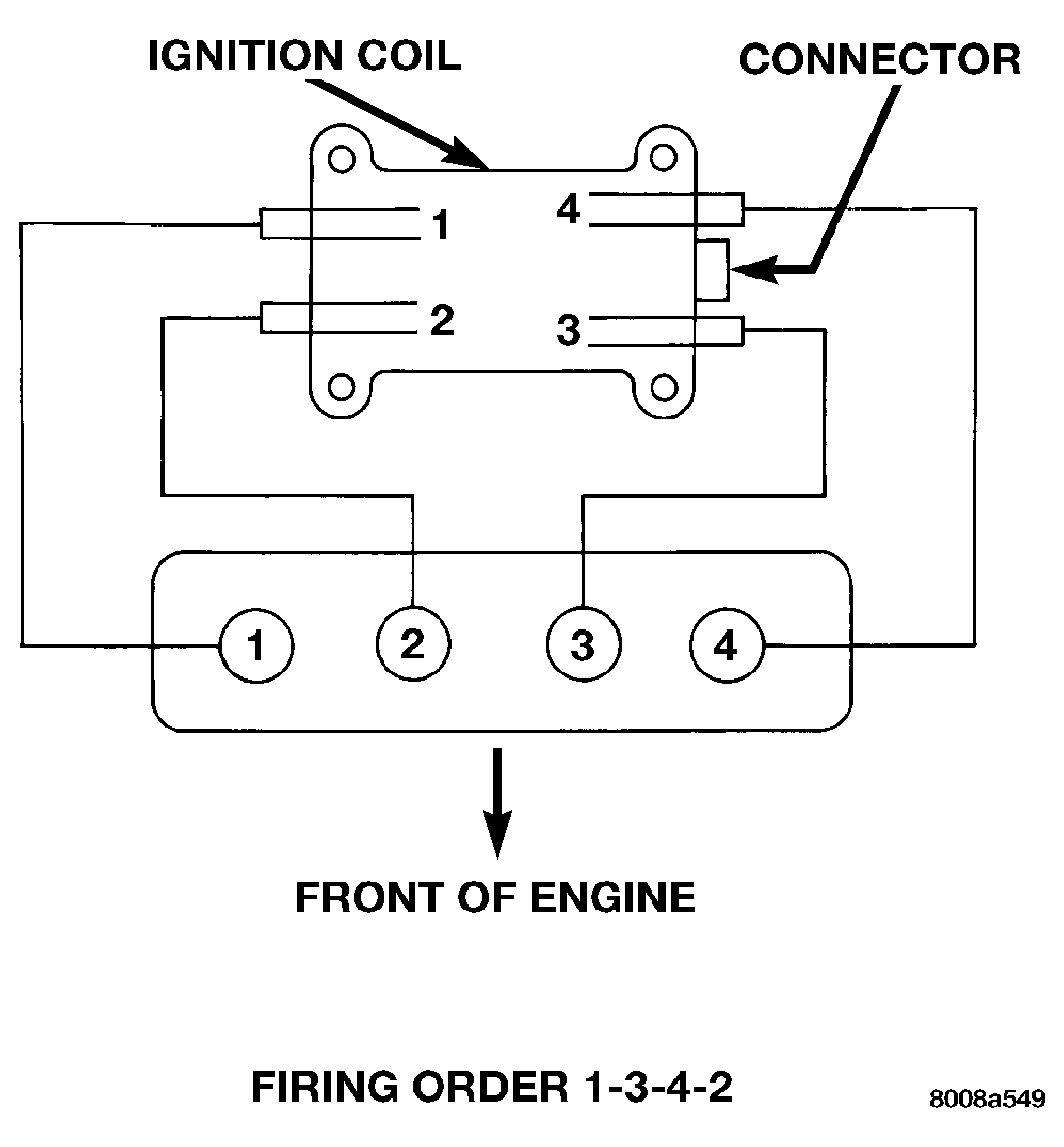

Fig 1: Firing Order 1-3-4-2 (2.4L)

GC0019908

Courtesy of DAIMLERCHRYSLER CORP.

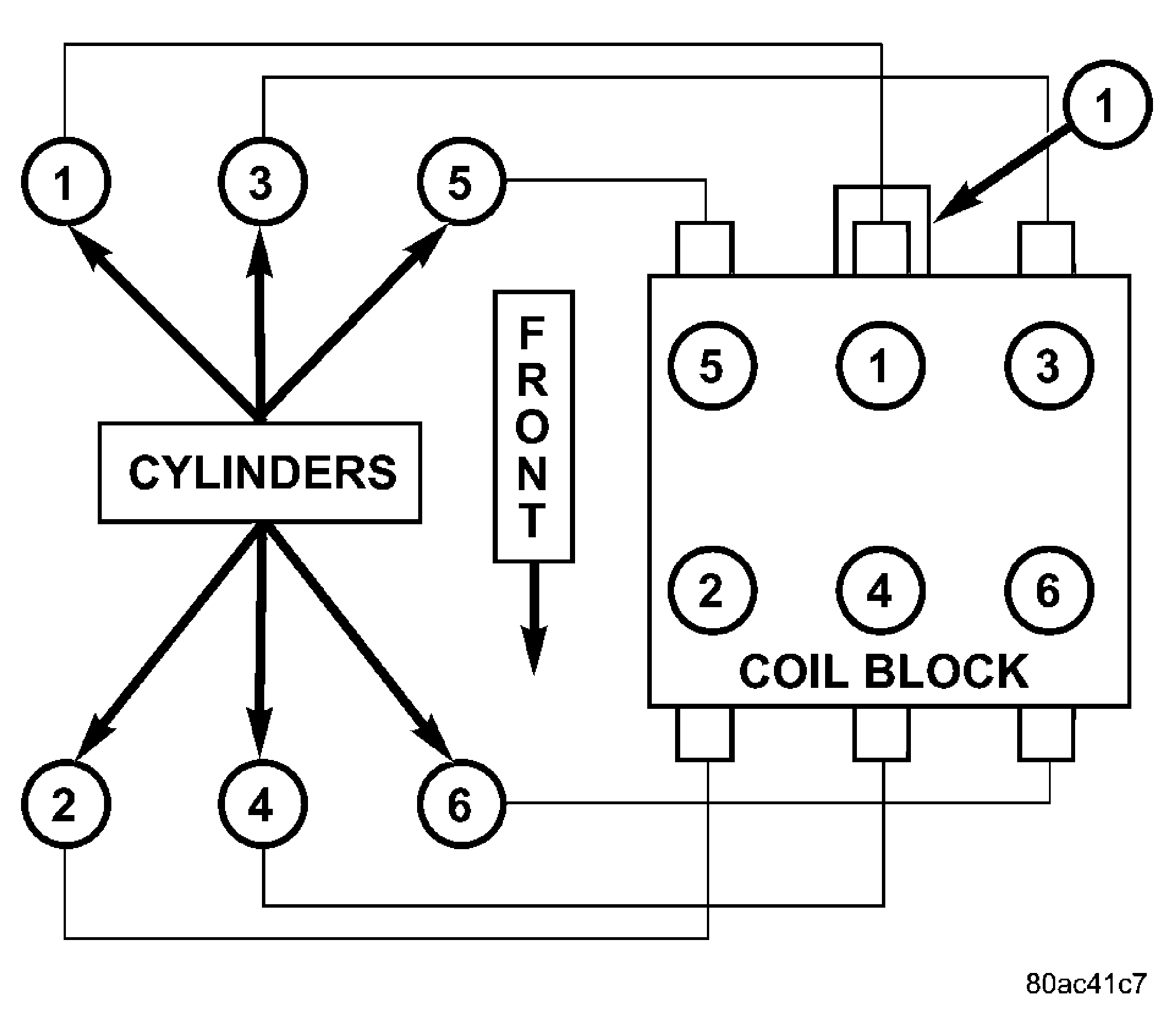

Fig 2: Firing Order 1-2-3-4-5-6 (3.3L/3.8L)

GC0024724

Courtesy of DAIMLERCHRYSLER CORP.

1 - Electrical Connector
