Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

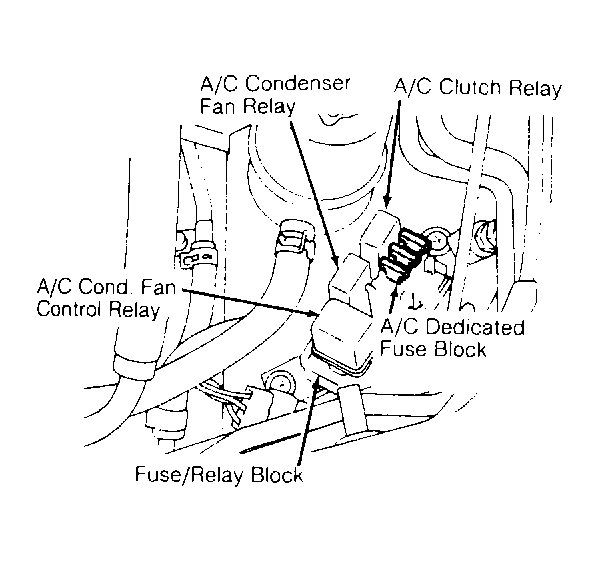

| A/C Dedicated Fuse Block | In fuse/relay block, on left inner fender. See Figure . |
| Fuse/Relay Block | On left inner fender. See Figure . |

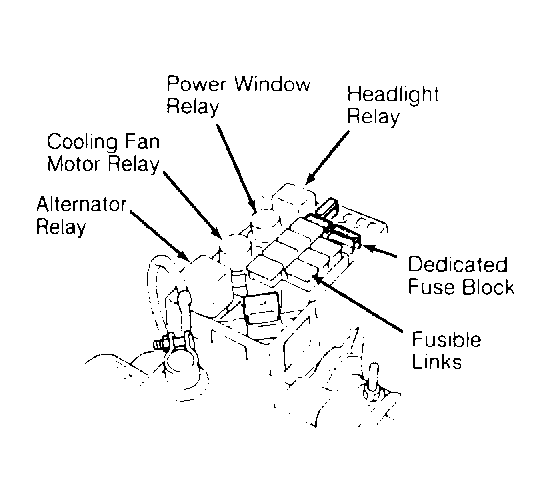

| Fusible Links | In fuse/relay block, on right inner fender. See Figure . |
| Multi-Purpose Fuse Block | Under left side of dash. See Figure . |
