Service Point Locations

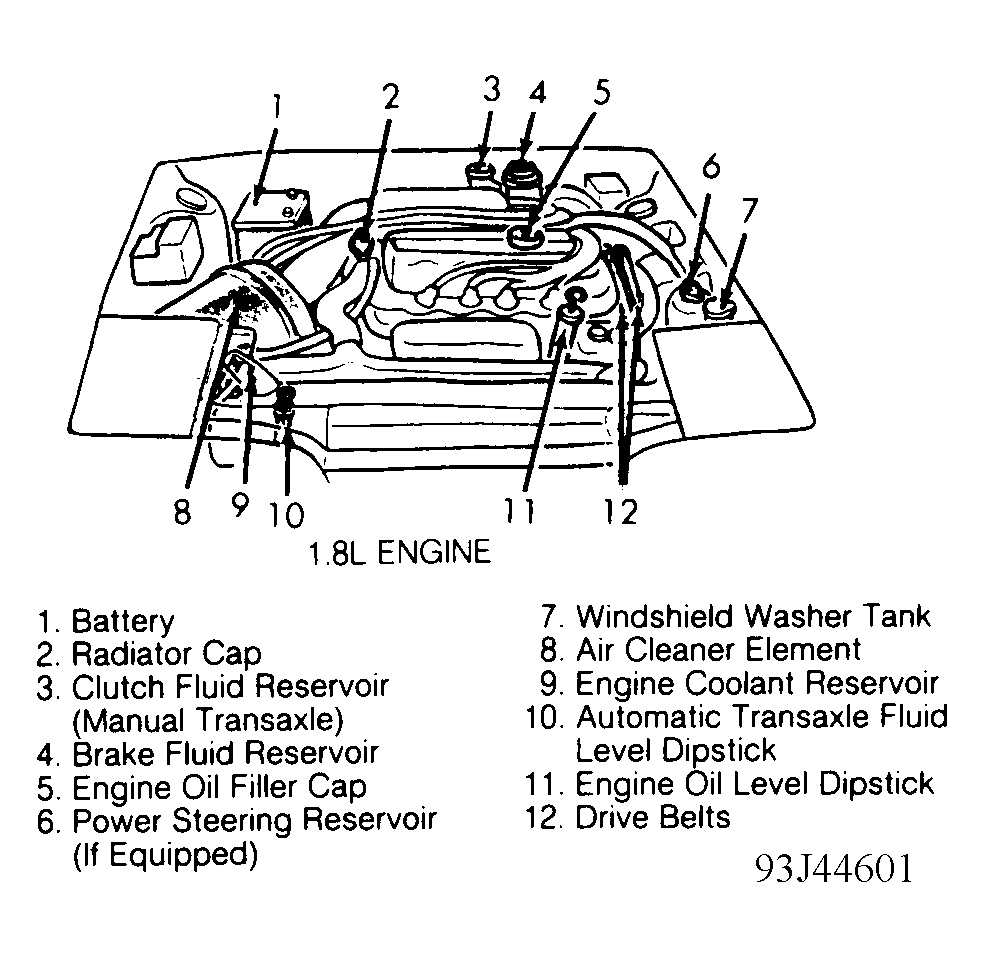

Fig 1: Service Point Locations (1.8L Engine)
G93J44601Courtesy of CHRYSLER MOTORS.

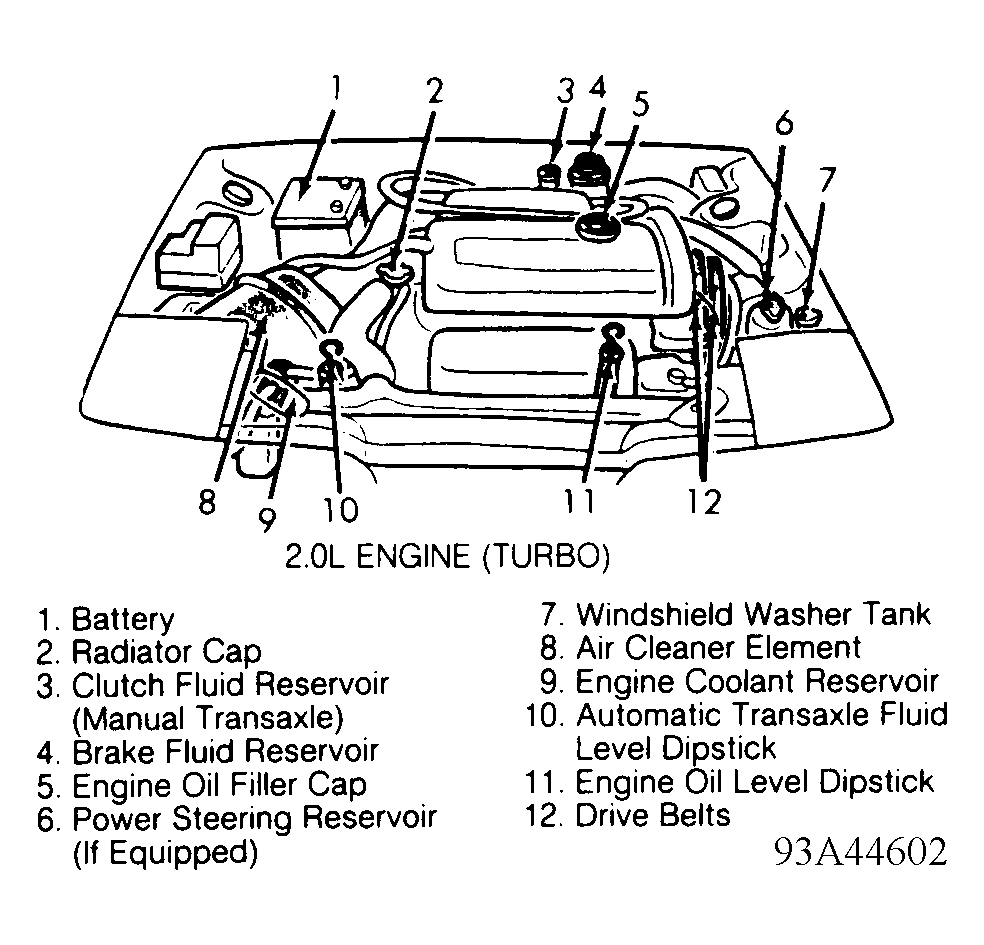

Fig 2: Service Point Locations (2.0L Turbo)
G93A44602Courtesy of CHRYSLER MOTORS.

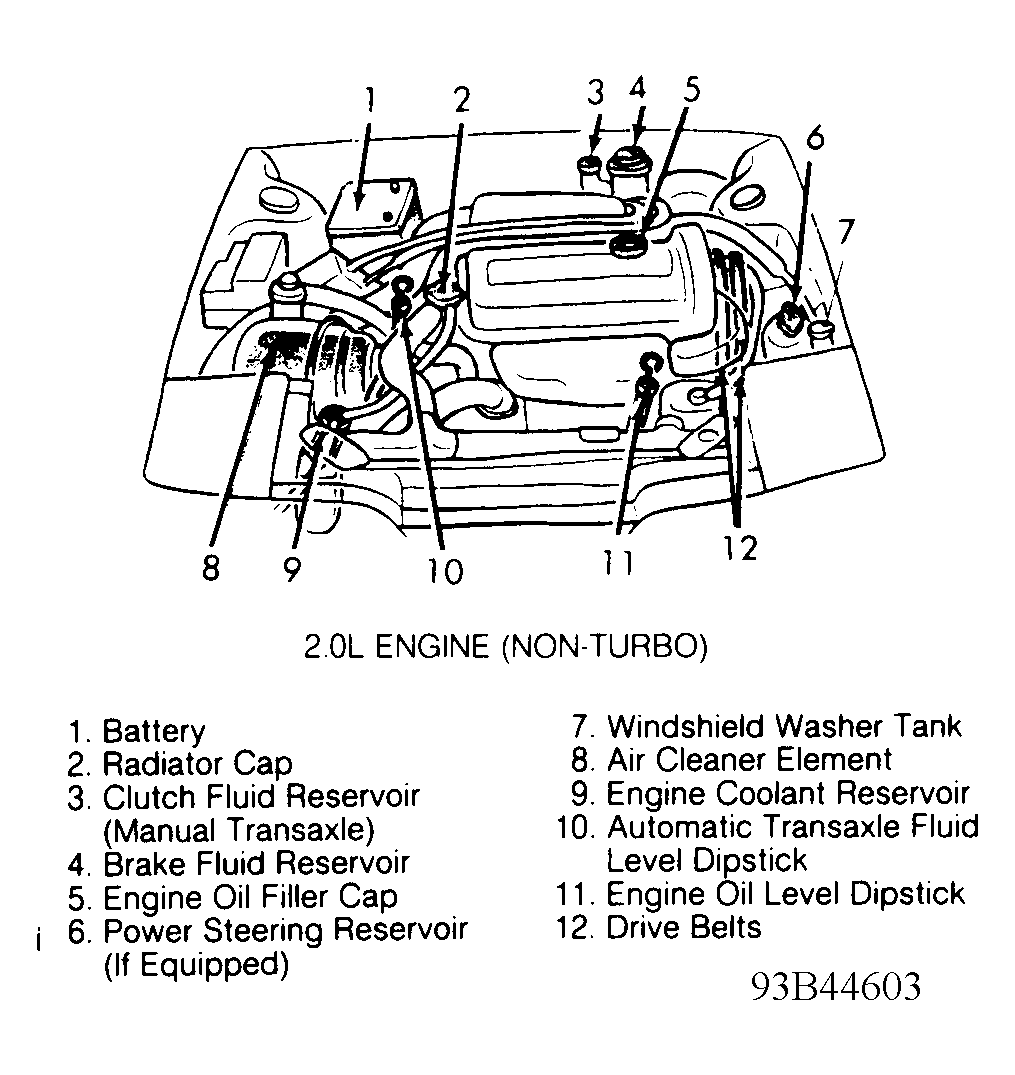

Fig 3: Service Point Locations (2.0L Non-Turbo)
G93B44603Courtesy of CHRYSLER MOTORS.
