Ignition Coil Resistance

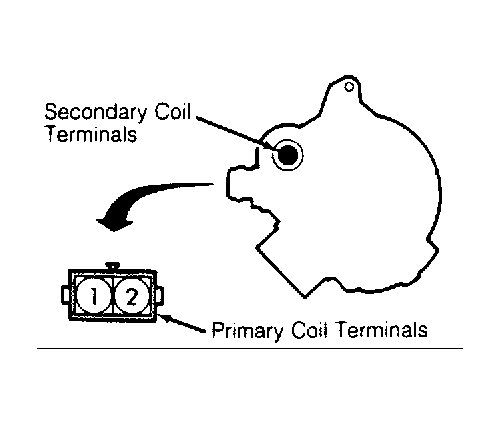

Disconnect ignition coil connector. Measure primary coil resistance between primary ignition coil terminals. See Fig 1. Primary coil resistance should be .9-1.2 ohms at 68°F (20°C). Measure secondary coil resistance between a primary coil terminal and secondary coil terminal. Secondary resistance should be 19,000-27,000 ohms.
HIGH TENSION WIRE RESISTANCE
| Application & Spark Plug Wire | Ohms | |||
|---|---|---|---|---|
| 1.8L | ||||
| 1 | 10,100 | |||
| 2 | 11,500 | |||
| 3 | 12,000 | |||
| 4 | 13,000 | |||
| Coil Wire | (1) | |||
| 2.0L & 2.0L Turbo | ||||
| 1 | 5800 | |||
| 2 | 8400 | |||
| 3 | 10,600 | |||
| 4 | 9700 | |||
|
||||
