Service Point Locations

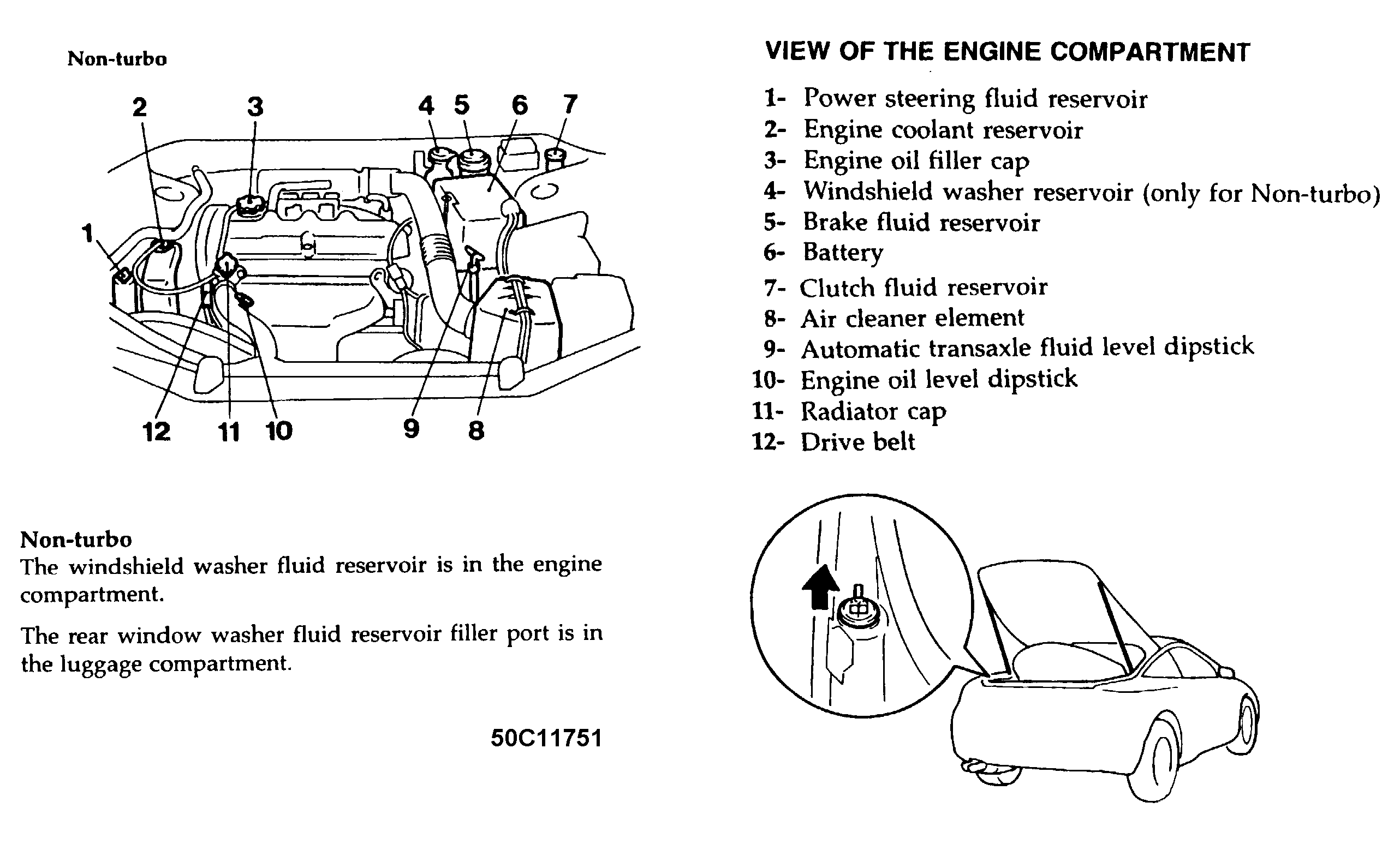

Fig 1: Service Point Locations (2.0L Non-Turbo)

Courtesy of CHRYSLER MOTORS.

Fig 2: Service Point Locations (2.0L Turbo)

Courtesy of CHRYSLER MOTORS.

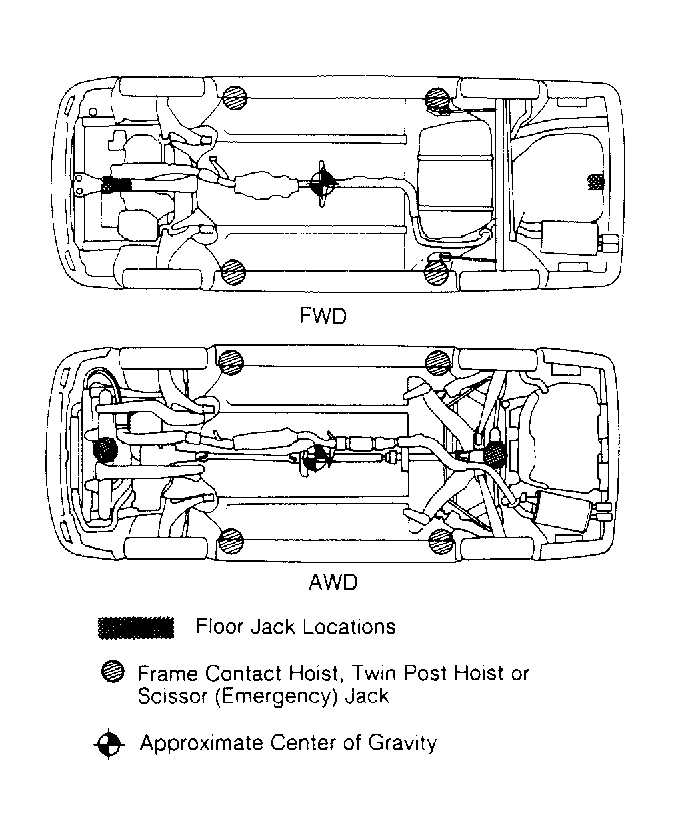

Fig 3: Lift Point Locations

Courtesy of CHRYSLER MOTORS.

NOTE: For more information regarding jacking or hoisting the vehicle, refer to the JACKING & HOISTING article in the WHEEL ALIGNMENT section.
