Starter (Lock) Test

With starter mounted in test stand and ring gear locked, adjust test stand rheostat to values specified (see specifications) and observe torque on dial indicator.

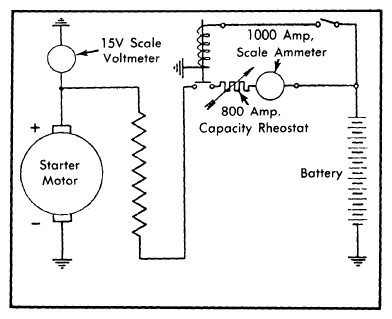

Fig 1: 1 Performance Test Wiring Diagram
G09362821Courtesy of NOT AVAILABLE
