Solenoid Test

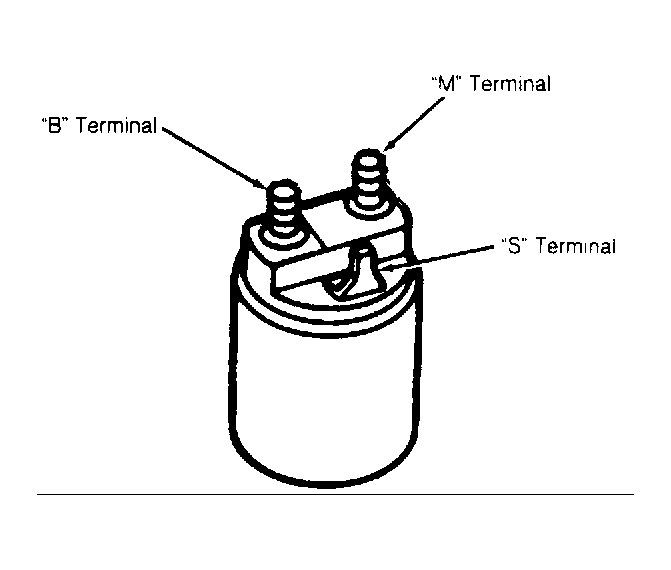

Check for continuity between terminals "S" and "M". If there is no continuity, replace solenoid. Connect one ohmmeter probe to solenoid body and other probe to terminal "S". Replace solenoid if there is no continuity. See Fig 1 . Connect ohmmeter probes between terminals "M" and "B". Replace solenoid if continuity is indicated.
