Home >> Ford >> 1992 >> Probe GL, Automatic >> Repair and Diagnosis >> Electrical >> Starter >> Wiring Diagram

Repair and Diagnosis: Electrical: Starter: Wiring Diagram

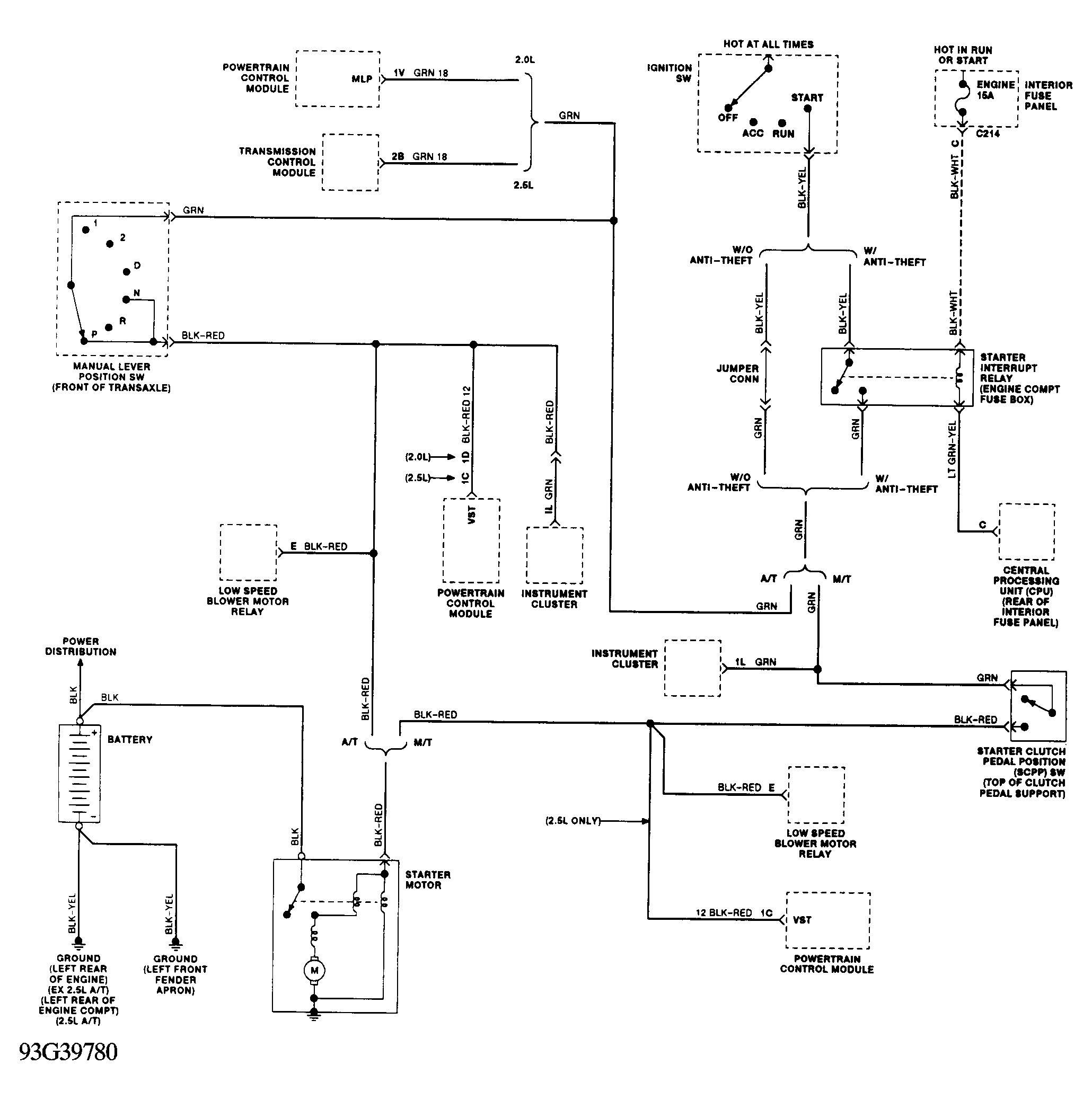

Fig 1: Starter System Wiring Diagram

G93G39780
