Firing Order & Timing Marks

NOTE: For firing order and timing marks, See Fig 1 .

Fig 1: Identifying Firing Order & Timing Mark ID

G91F13438

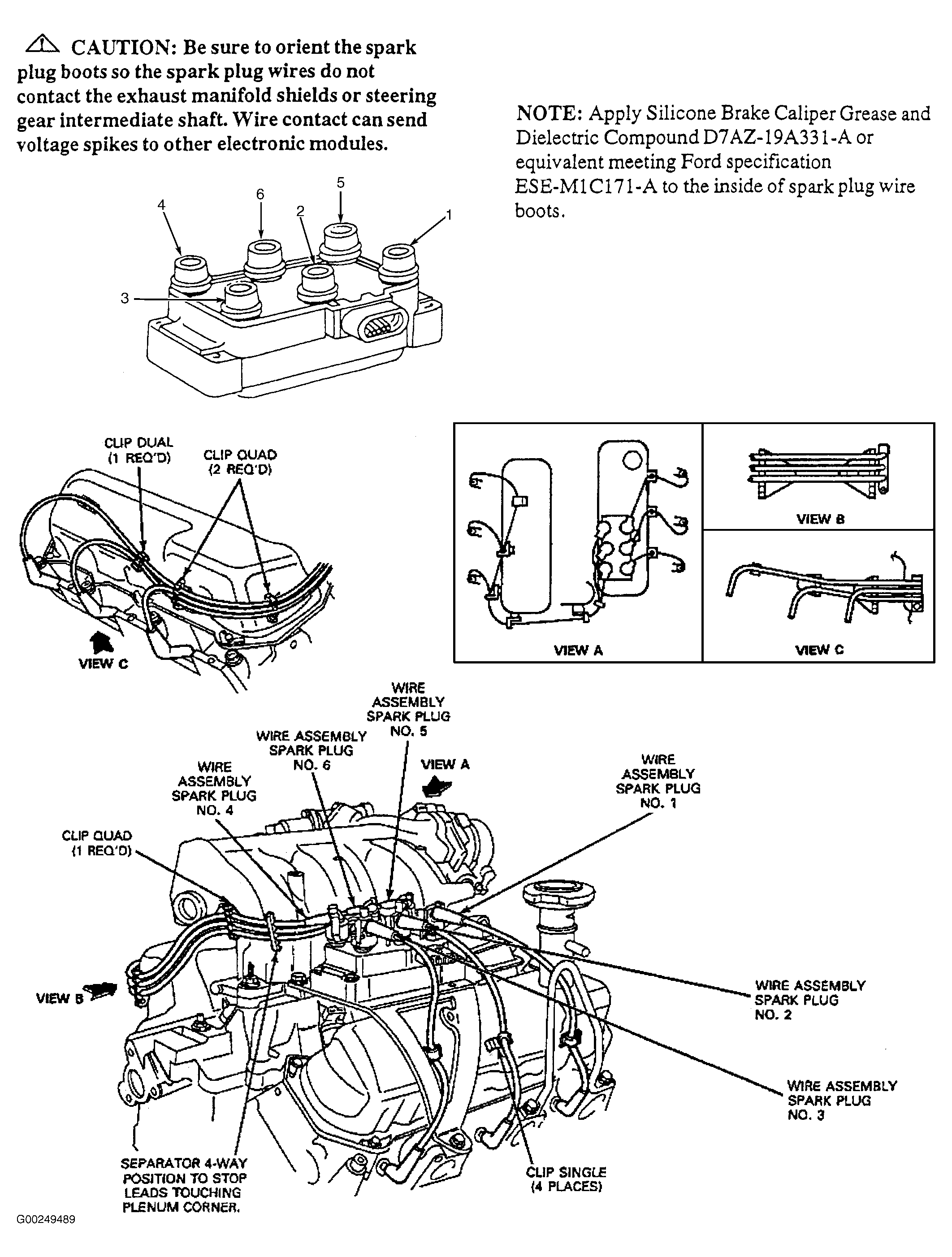

Fig 2: Identifying Spark Plug Wire Routing

G00249489

Courtesy of FORD MOTOR CO.
