Master Switch

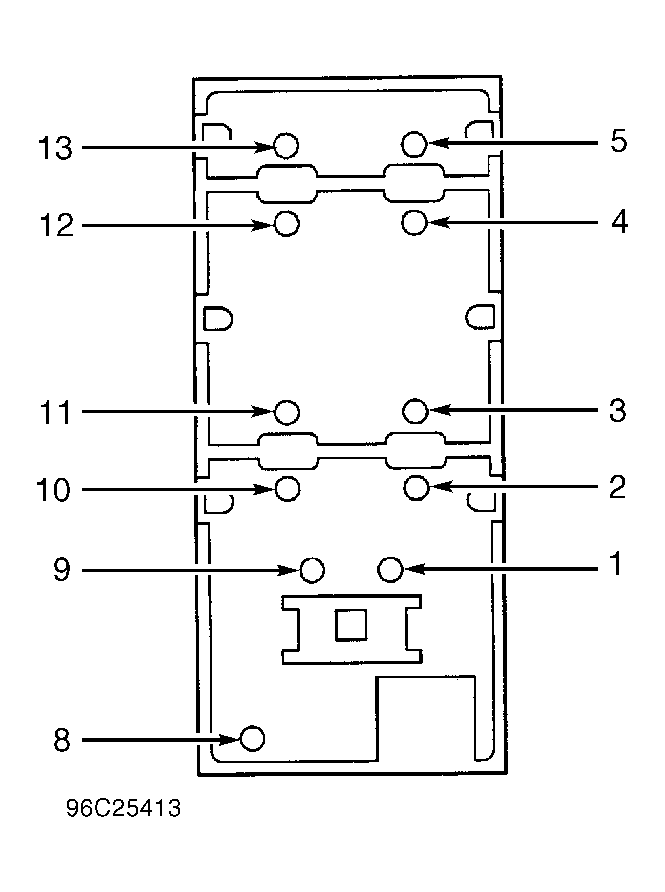

Remove master switch from vehicle. Measure resistance between specified terminals while operating switch. See MASTER SWITCH TESTING TABLE. See Fig 1. Replace switch if resistance between specified terminals is greater than 5 ohms. DO NOT check resistance between terminals not specified.
MASTER SWITCH TESTING
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Lock-Out | 8 & 9 | |
| Left Front | ||
| Up | 5 & 9 | |
| Down | 4 & 9 | |
| Right Front | ||
| Up | 9 & 13 | |
| Down | 9 & 12 | |
| Left Rear | ||
| Up | 3 & 9 | |
| Down | 2 & 9 | |
| Right Rear | ||
| Up | 9 & 11 | |
| Down | 9 & 10 | |
