Home >> Ford >> 1997 >> Probe Base, Automatic >> Repair and Diagnosis >> Engine Performance >> Specifications >> Engine Controls - Specifications - 2.0L >> Ignition System >> Firing Order & Timing Marks

Firing Order & Timing Marks

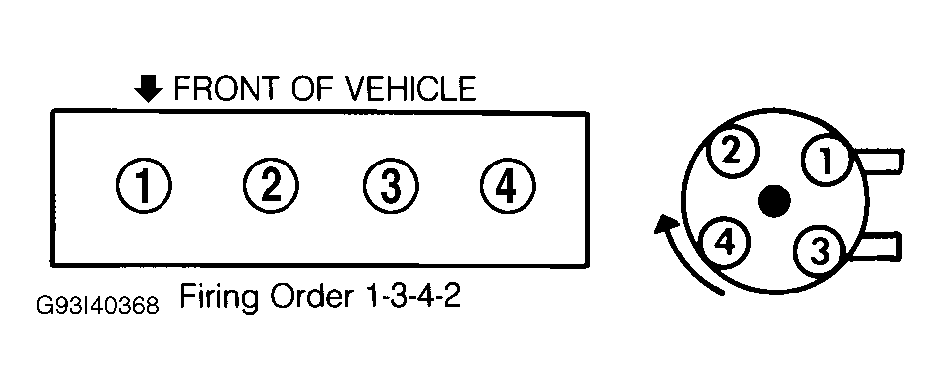

Fig 1: Firing Order
G93I40368
BASE IGNITION TIMING

Application Degrees BTDC @ Idle
2.0L (VIN A) (1) 9-11
(1) Disconnect single in-line SPOUT connector, or remove shorting bar from double-wire SPOUT connector.
