Piston Rings

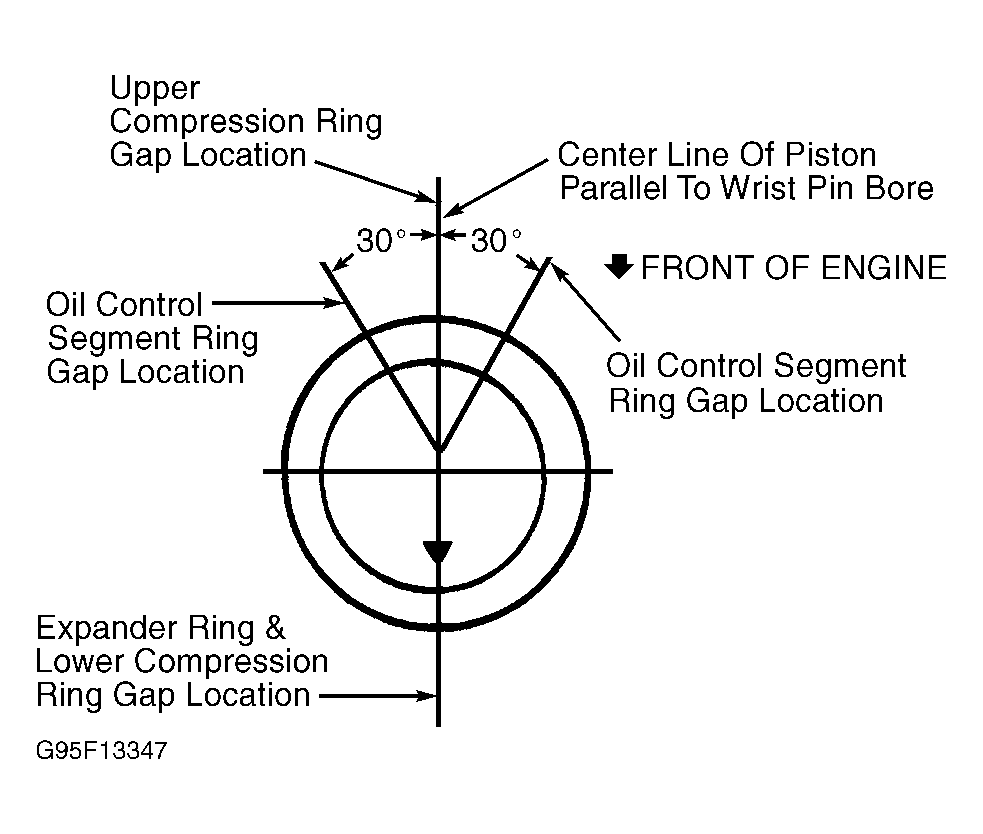

Inspect piston rings for abnormal wear or breakage. Ensure ring end gap and side clearance are within specification. See PISTONS, PINS & RINGS table under ENGINE SPECIFICATIONS. Position piston rings at designated areas. See Figure.
Inspect piston rings for abnormal wear or breakage. Ensure ring end gap and side clearance are within specification. See PISTONS, PINS & RINGS table under ENGINE SPECIFICATIONS. Position piston rings at designated areas. See Figure.
