Rear Wheel Speed Sensor: Removal

  1. Loosen the wheel nuts.
  2. Raise and support the vehicle.
  3. Remove the wheel.
  4. Remove the wheel speed sensor.
  5. Disconnect the wheel speed sensor wiring harness.
    1. Disconnect the electrical connector.
    2. Detach the clips.

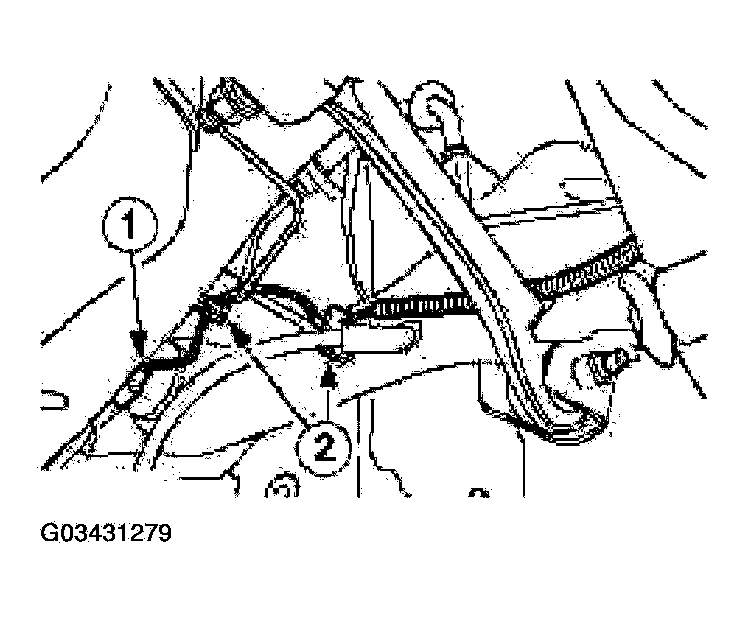

      Fig 1: Disconnecting Wheel Speed Sensor Wiring Harness (Rear Wheel)
      G03431279Courtesy of FORD MOTOR CO.
