Removal and Installation

  1. Remove the accelerator cable (9A758) from the accelerator pedal and shaft (9725).

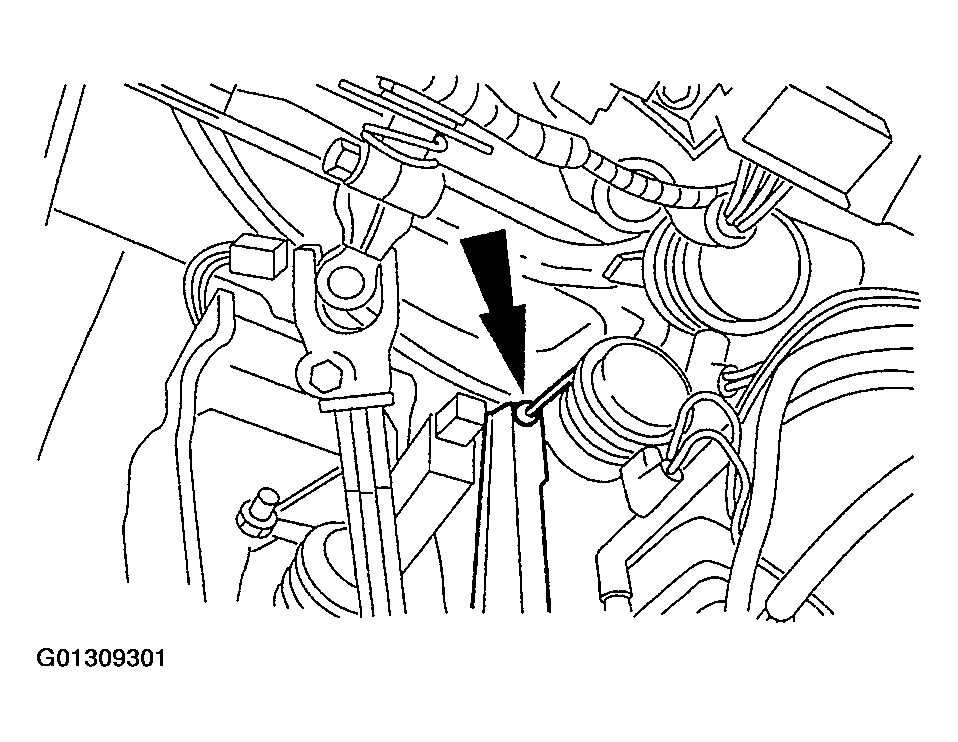

    Fig 1: Removing Accelerator Cable From Accelerator Pedal And Shaft
    G01309301Courtesy of FORD MOTOR CO.
  2. Depress the tabs on the accelerator pedal retaining pin and remove the pin. Remove the accelerator pedal.

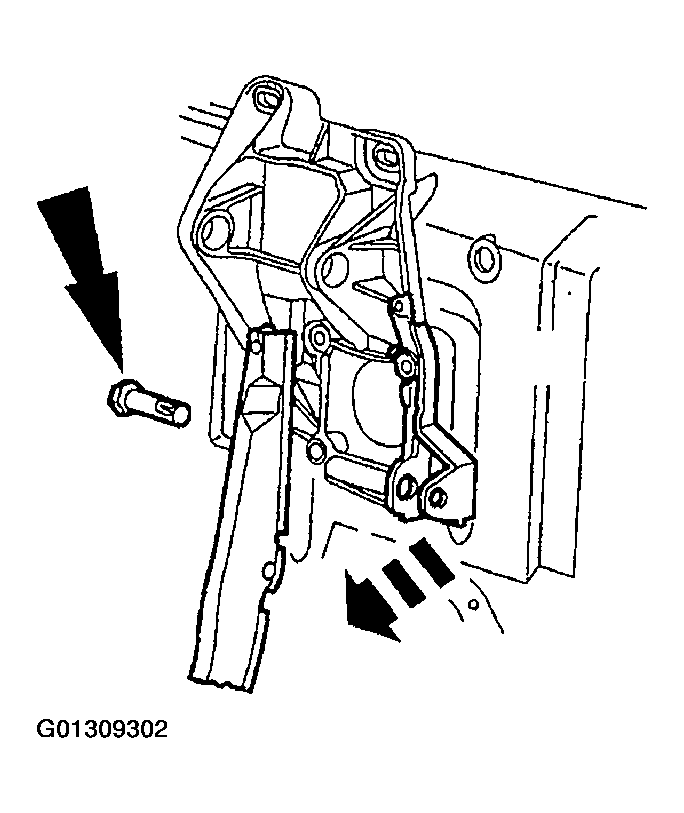

    Fig 2: Removing Accelerator Pedal
    G01309302Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
