Home >> Ford >> 2003 >> Windstar Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission External Controls >> Diagnosis And Testing >> External Controls >> Symptom Chart

Symptom Chart

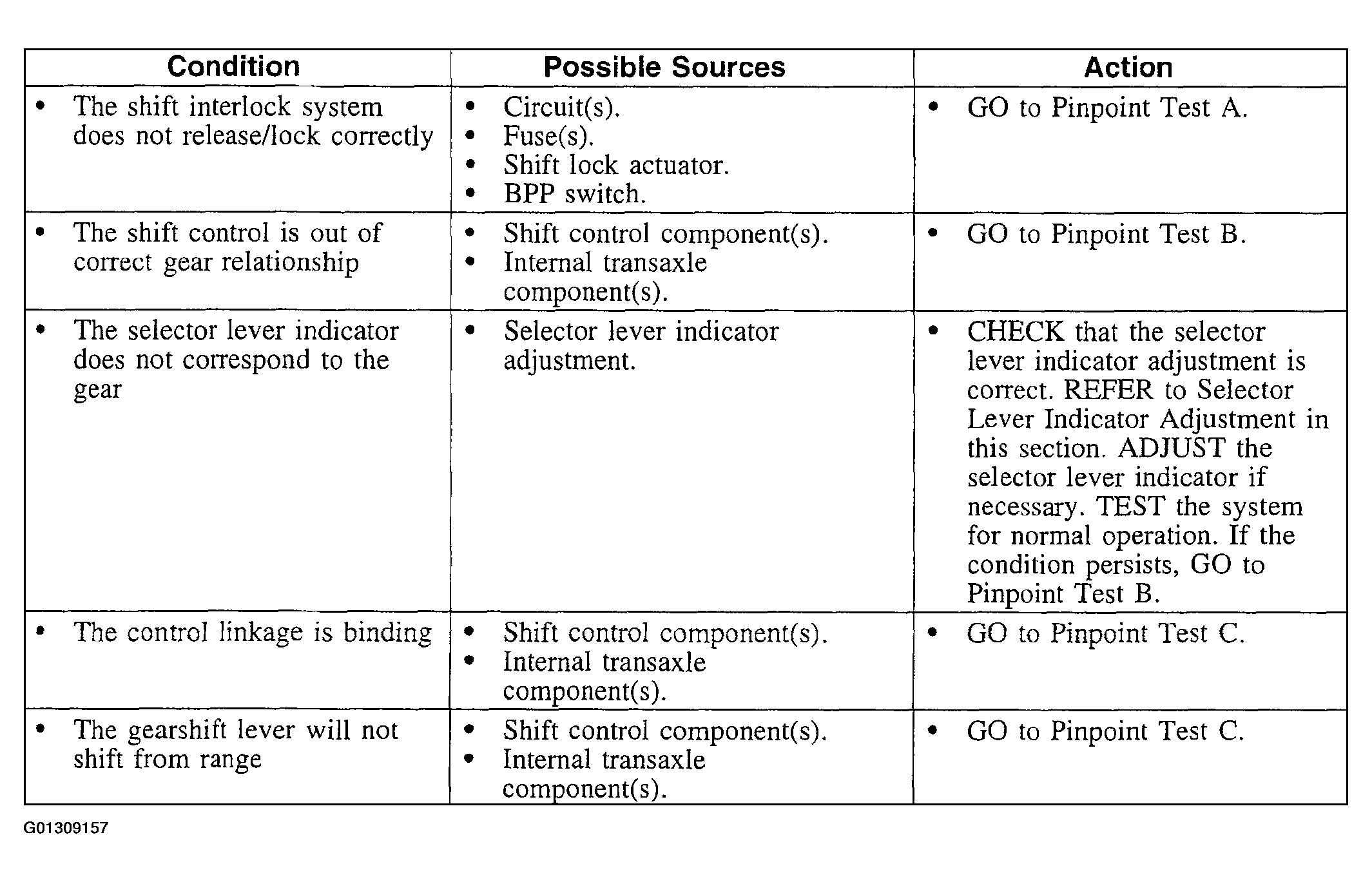

Fig 1: Automatic Transaxle/Transmission External Controls Problems Symptom Chart (1 Of 2)
G01309157Courtesy of FORD MOTOR CO.

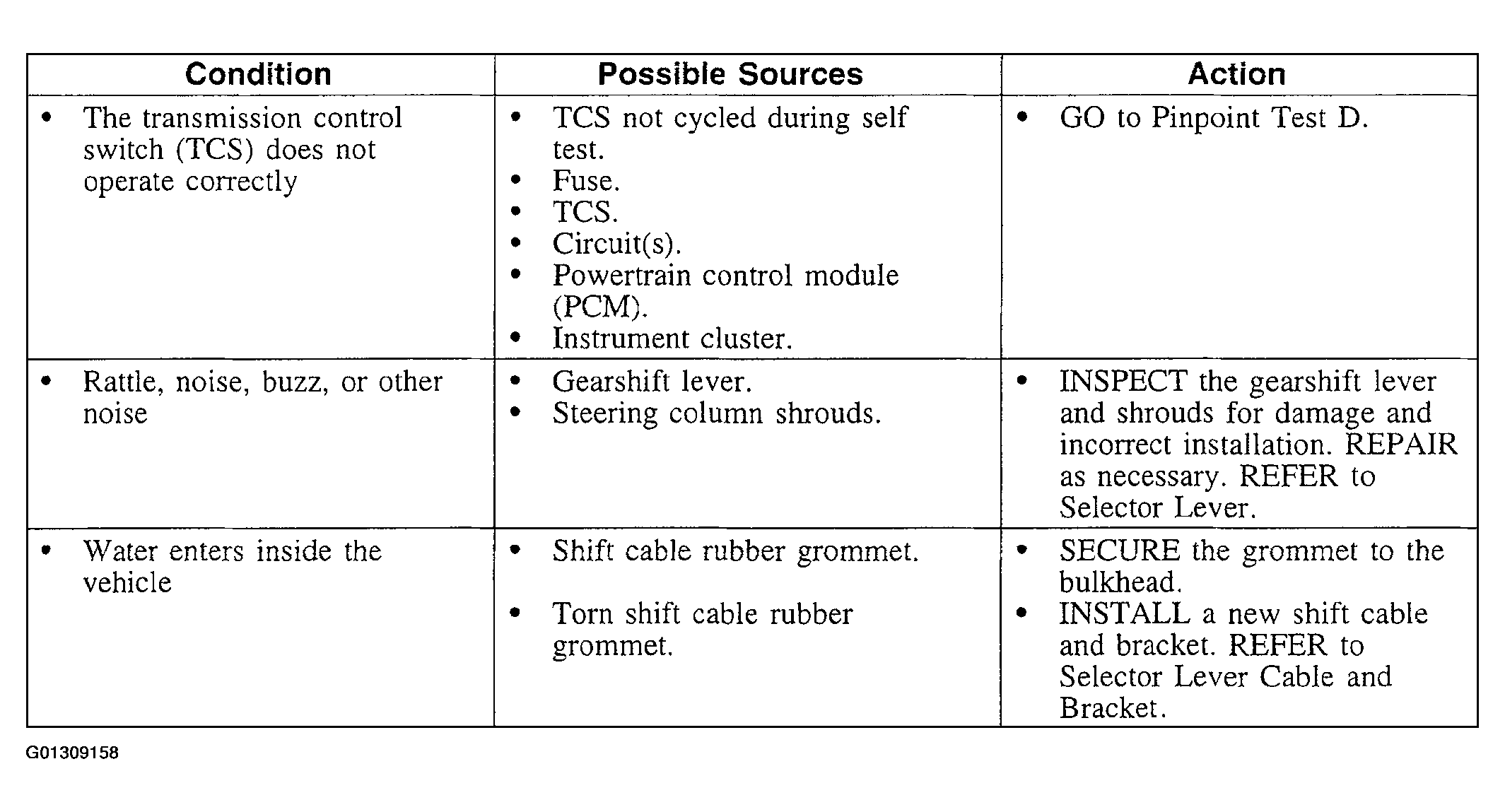

Fig 2: Automatic Transaxle/Transmission External Controls Problems Symptom Chart (2 Of 2)
G01309158Courtesy of FORD MOTOR CO.
