Home >> Ford >> 2003 >> Windstar Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission External Controls >> Removal And Installation >> Transmission Control Switch >> Removal and Installation

Removal and Installation

  1. Remove the transmission control switch (TCS).
    1. Remove the cover.
    2. Remove the TCS.

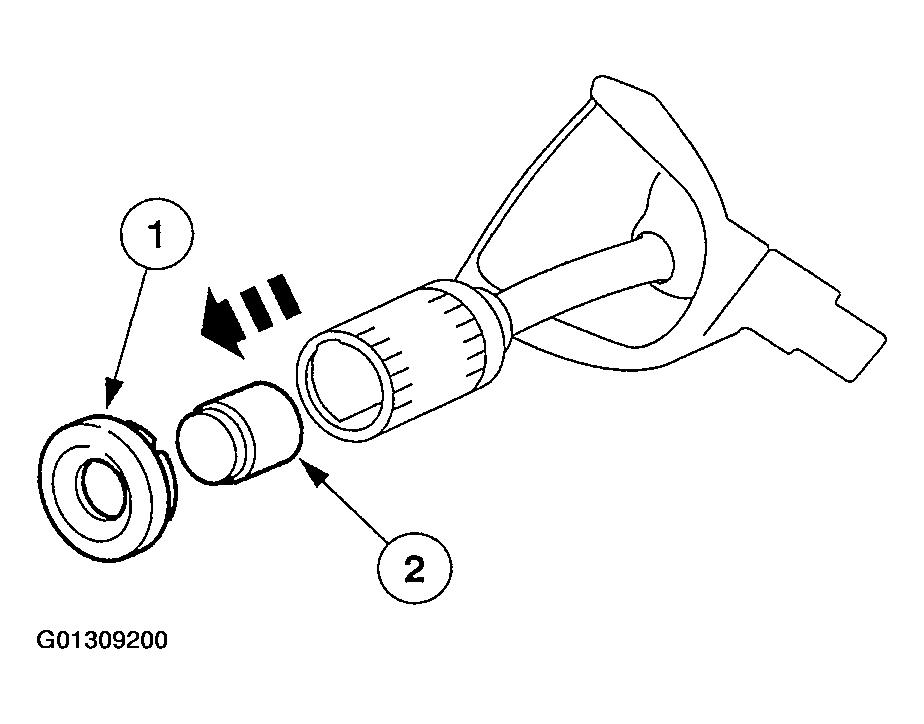

      Fig 1: Removing Transmission Control Switch
      G01309200Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
