Oil Level Indicator And Tube: Installation

  1. Install the oil level indicator tube in the cylinder block (6010).
  2. Apply stud and bearing mount to the end of the oil level indicator tube (cylinder block side). Install the bolt.

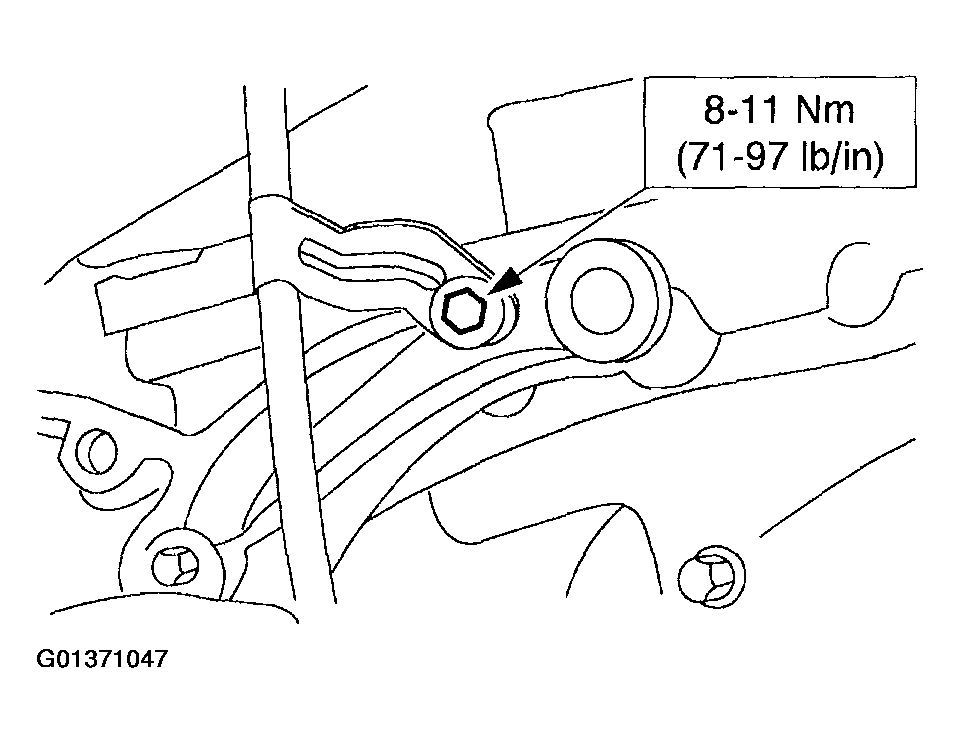

    Fig 1: Installing Bolt
    G01371047Courtesy of FORD MOTOR CO.
