Home >> Ford >> 2003 >> ZX2 Standard >> Repair and Diagnosis >> Brakes >> Traction Control >> Anti-Lock Control >> Diagnosis And Testing >> Anti-Lock Control >> System Pre-Check >> Anti-Lock Brake Control Module Parameter Identification (PID) Index

Anti-Lock Brake Control Module Parameter Identification (PID) Index

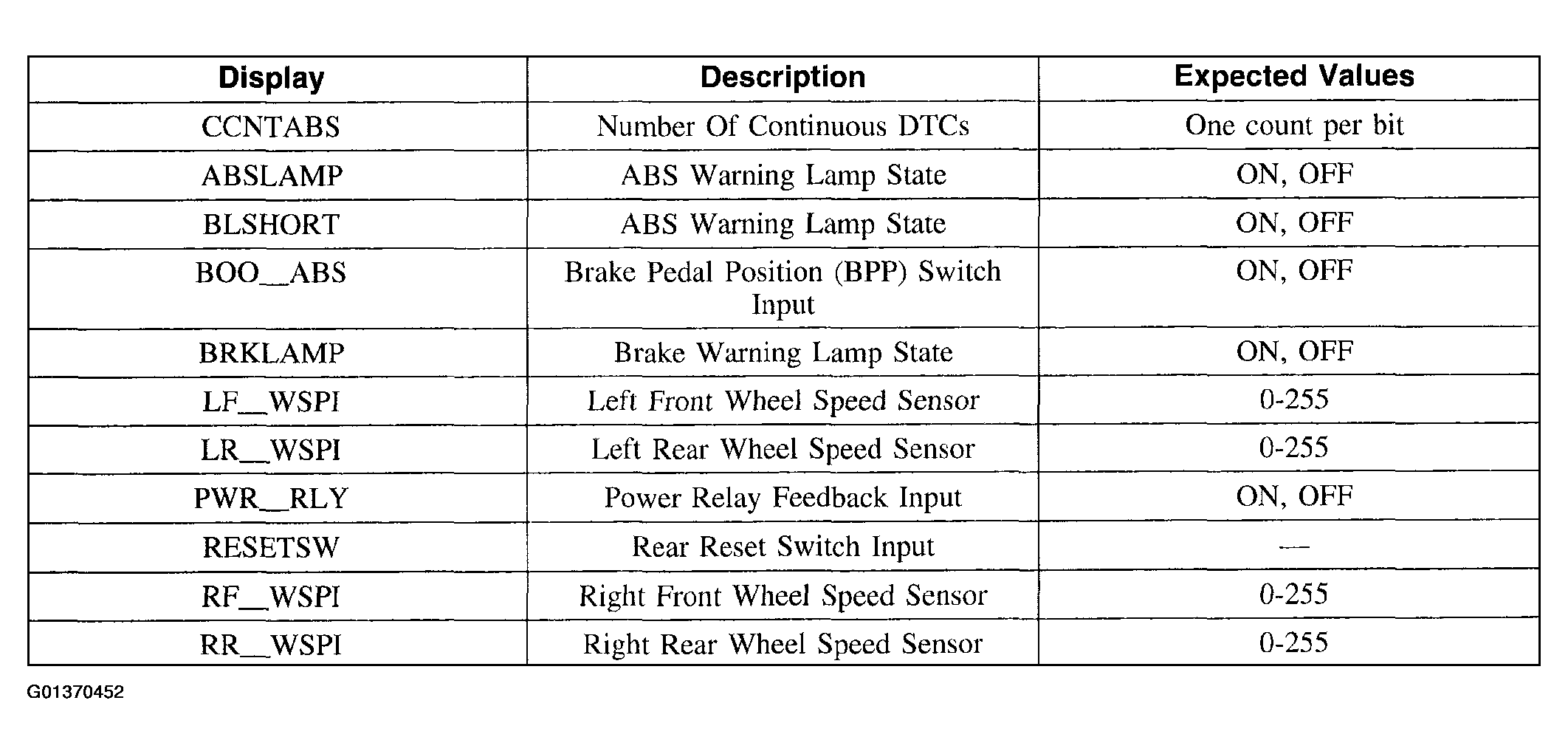

Fig 1: Anti-Lock Brake Control Module Parameter Identification (PID) Index

G01370452

Courtesy of FORD MOTOR CO.
