Engine Ignition Components-Exploded View

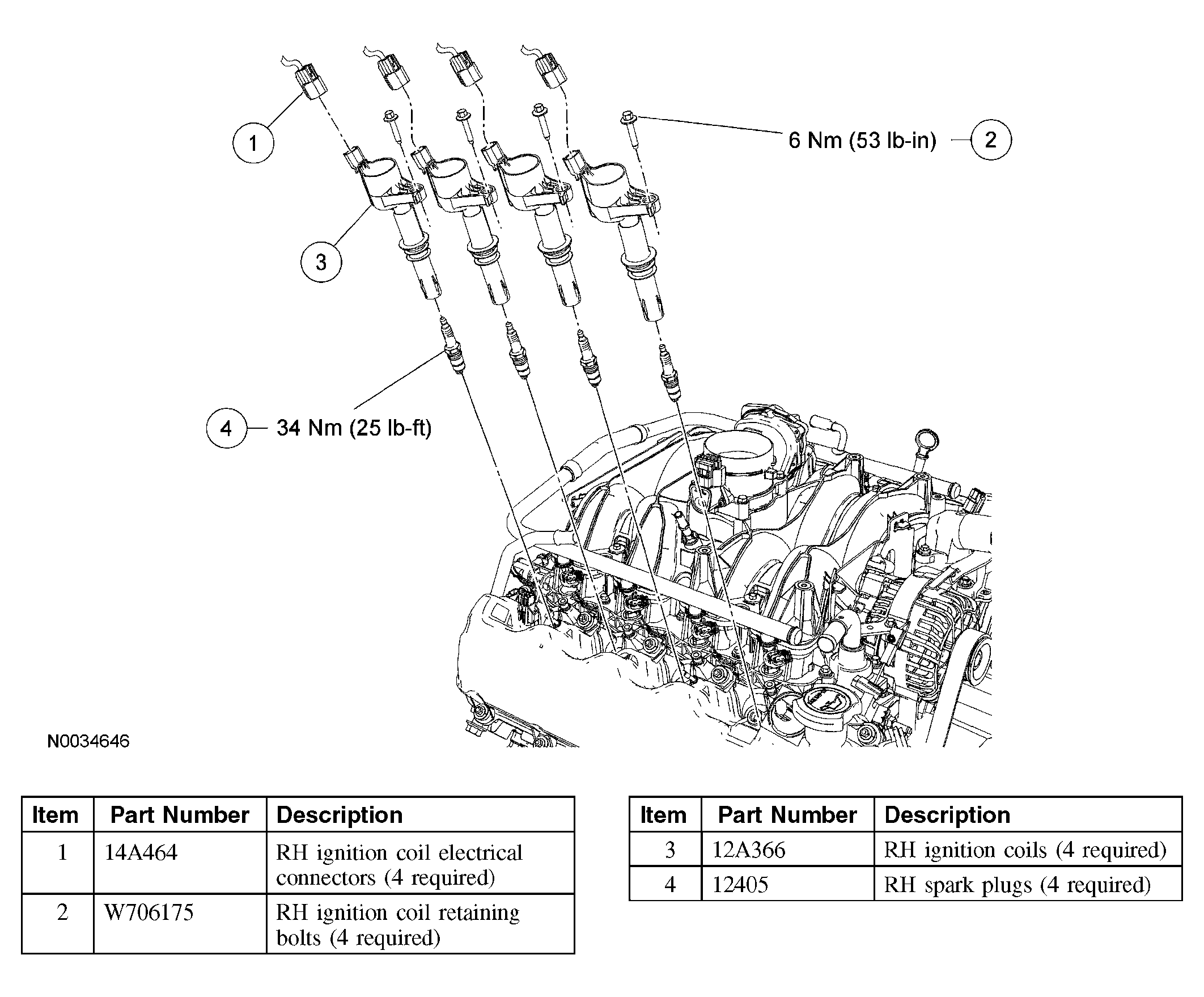

Fig 1: Engine Ignition Components - Exploded View (RH)

Courtesy of FORD MOTOR CO.

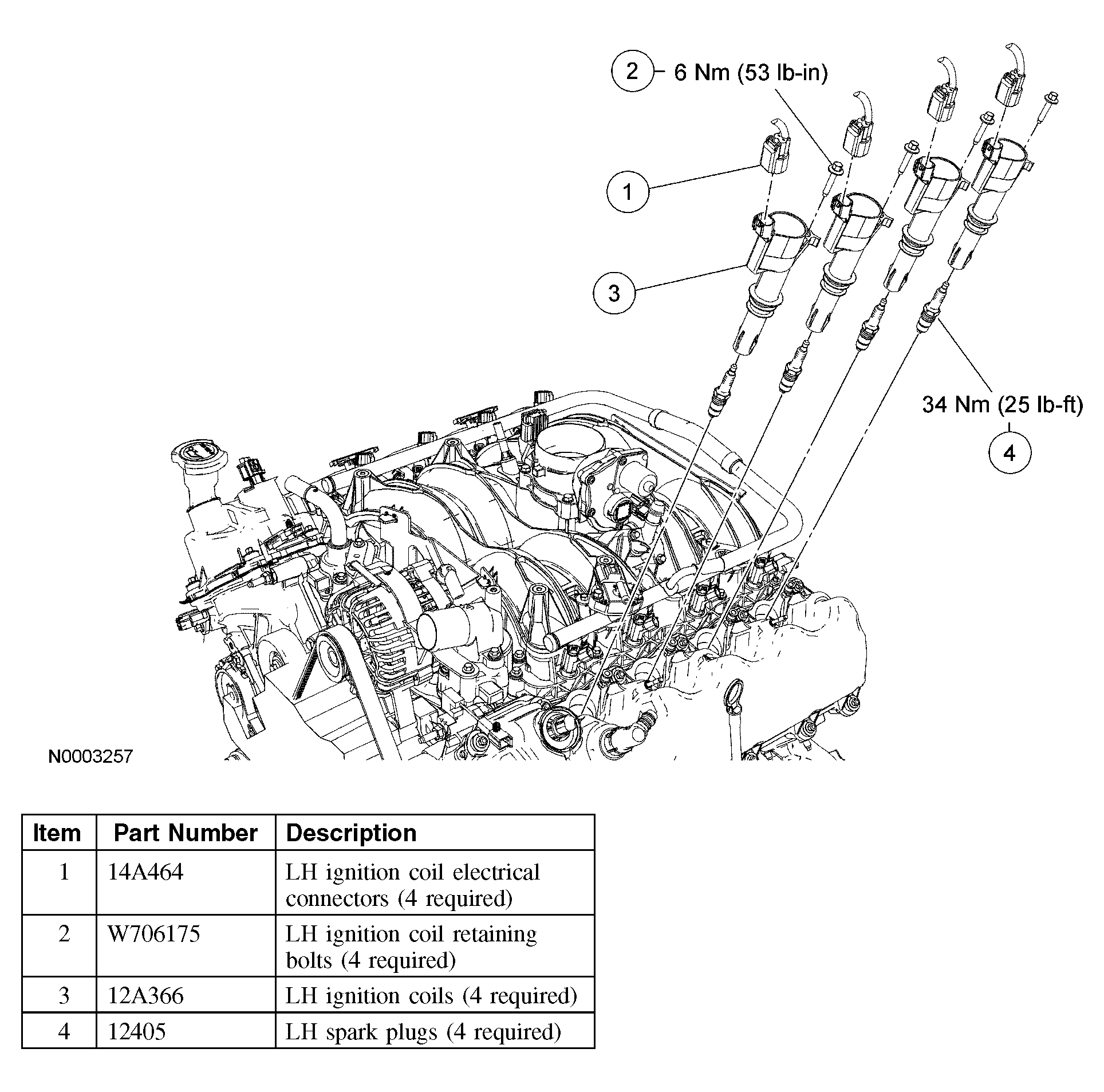

Fig 2: Engine Ignition Components - Exploded View (LH)

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedures in this article.
