Accelerator Control System Components - Exploded View

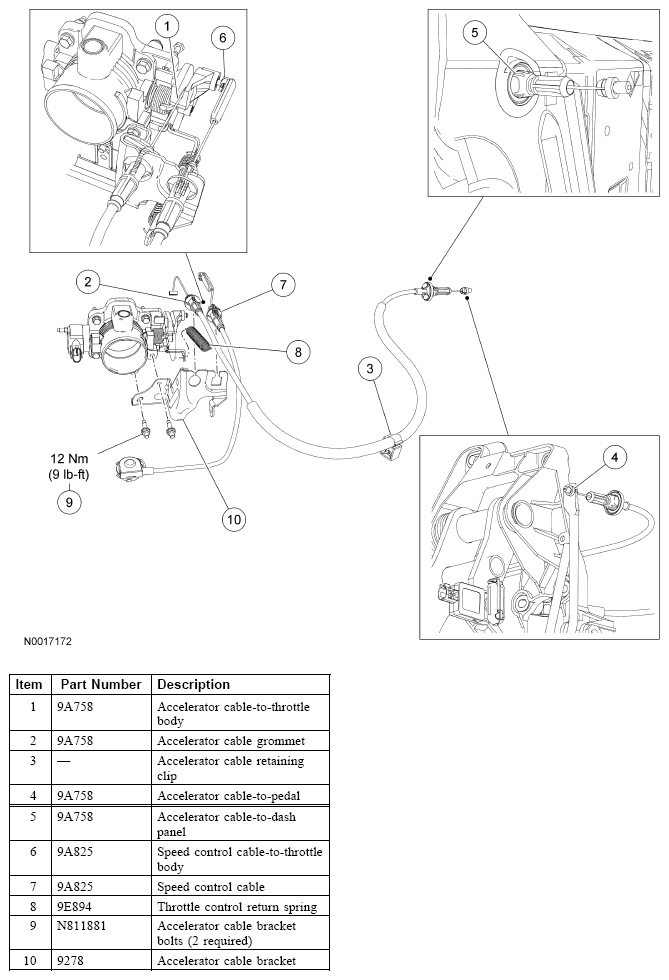

Fig 1: Exploded View Of Accelerator Control System Components
G04661871Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate procedure.
