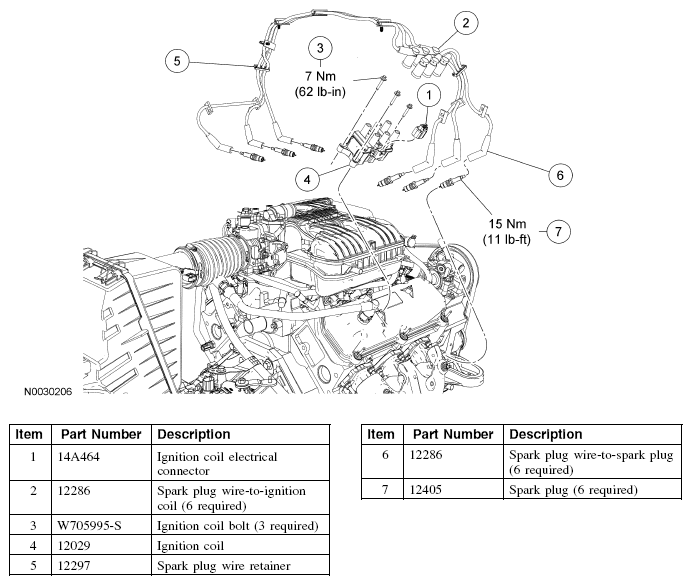

Engine Ignition Components - Exploded View

Fig 1: Exploded View Of Engine Ignition Components

Courtesy of FORD MOTOR CO.

1. For additional information, refer to the appropriate procedure in this article.
