Component Testing: Introduction: Schematic

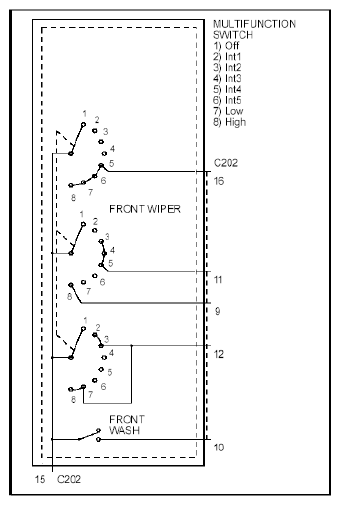

Fig 1: Front Wiper And Washer Schematic Diagram

G07900654

Courtesy of FORD MOTOR CO.

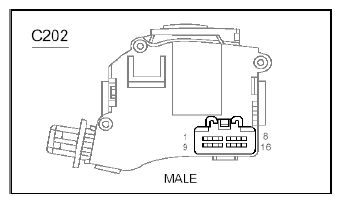

Fig 2: Identifying C202 Terminals

G07900655

Courtesy of FORD MOTOR CO.
