Master window adjust switch - Expedition: Schematic

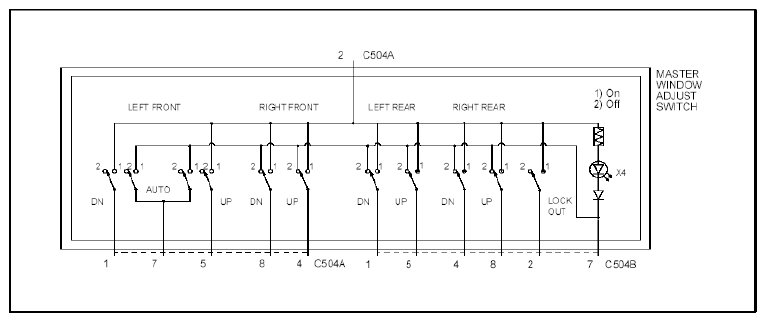

Fig 1: Master Window Adjust Switch (Expedition) Schematic Diagram

G07900672

Courtesy of FORD MOTOR CO.
