Master window adjust switch - Navigator: Schematic

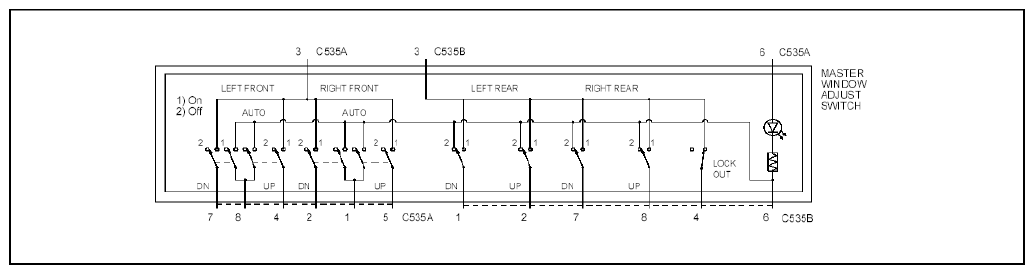

Fig 1: Master Window Adjust Switch (Navigator) Schematic Diagram

G07900678

Courtesy of FORD MOTOR CO.
