Power window switch, RH side front - Navigator: Schematic

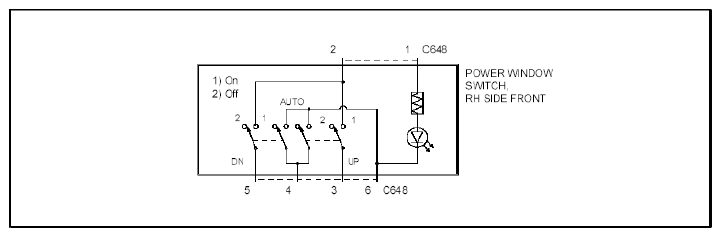

Fig 1: Power Window Switch, RH Side Front (Navigator) Schematic Diagram

G07900680

Courtesy of FORD MOTOR CO.
