Multifunction Switch, Wiper/Washer Portion: Schematic

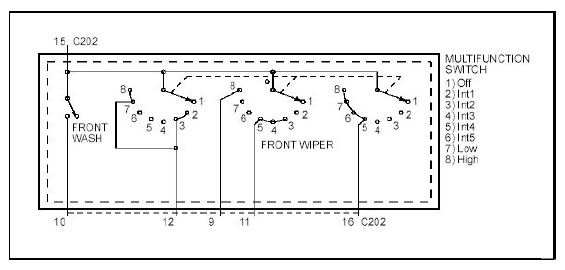

Fig 1: Multifunction Switch, Wiper/Washer Portion - Component Testing

G07898307

Courtesy of FORD MOTOR CO.
