Roof opening panel control switch: Schematic

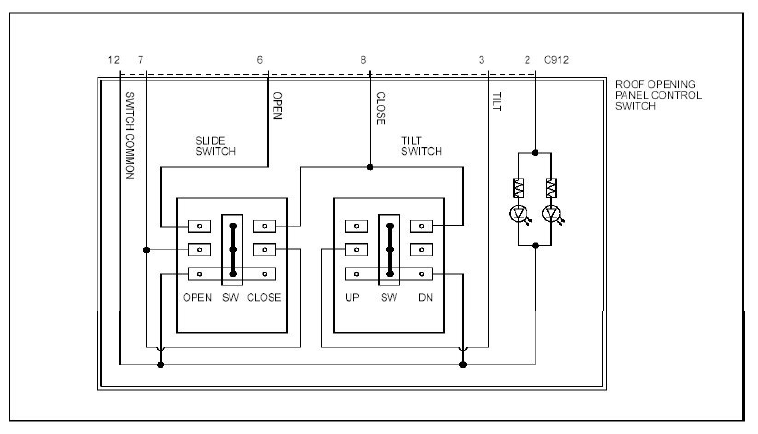

Fig 1: Roof Opening Panel Control Switch - Component Testing

G07898317

Courtesy of FORD MOTOR CO.
