Selector Lever Cable: Installation

  1. NOTE: Gearshift cables must not be kinked or bent.

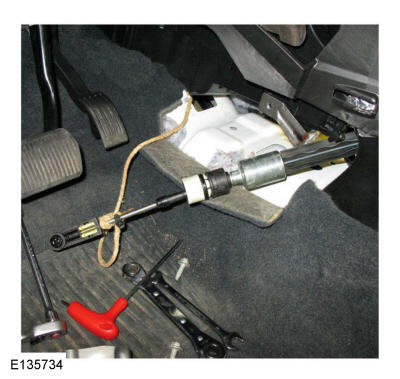

    Attach a pull cord to the selector lever cable. Use the General Equipment: Draw Cord Use the General Equipment: Adhesive Tape

    GFD215536Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
  3. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .
