Home >> Ford >> 2021 >> Edge ST-Line, FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission External Controls >> Removal And Installation >> Upshift Paddle Switch >> Removal

Upshift Paddle Switch: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the driver airbag. Refer to: Driver Airbag

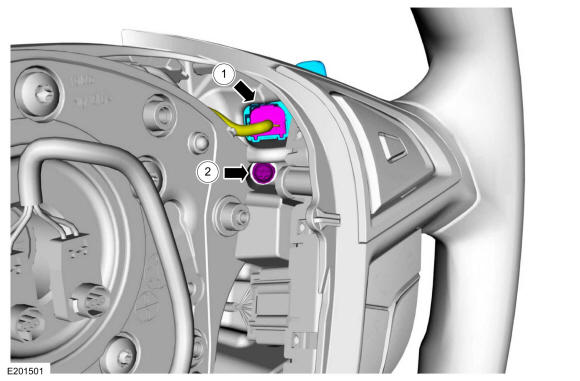

  2. Remove the upshift paddle switch.

    1. Disconnect the electrical connector.
    2. Remove the retainer and the upshift paddle swicth.

      Torque: 44 lb.in (5 Nm)

GFD596640Courtesy of FORD MOTOR COMPANY
