GMC
>>
1997
>>
Jimmy 4D Utility, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Blower Motor Resistor
Blower Motor Resistor

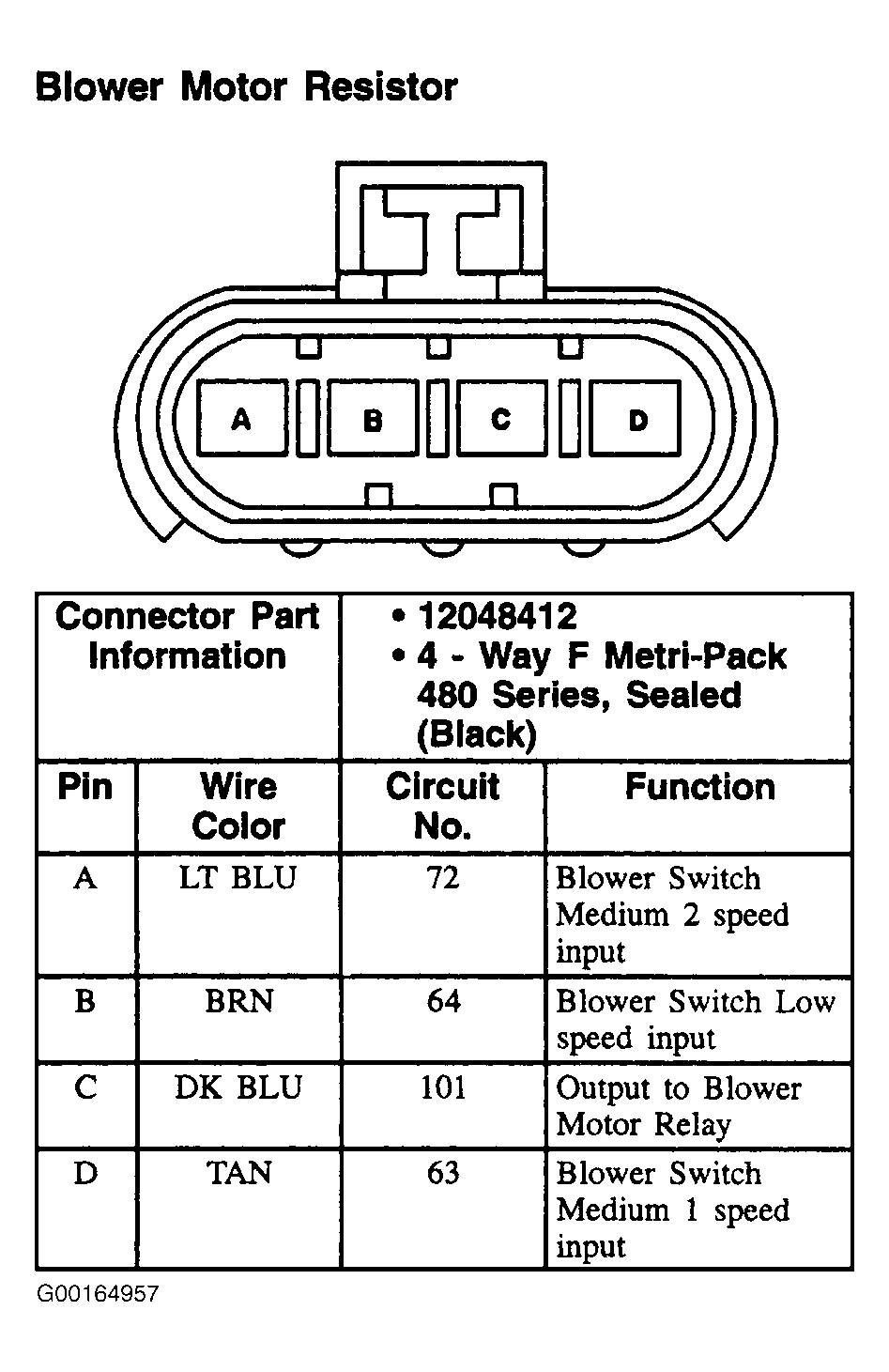

Fig 1: Blower Motor Resistor - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
