GMC
>>
1997
>>
Jimmy 4D Utility, 4WD
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Connector Terminal Identification
>>
Brake Pressure Warning Switch
Brake Pressure Warning Switch

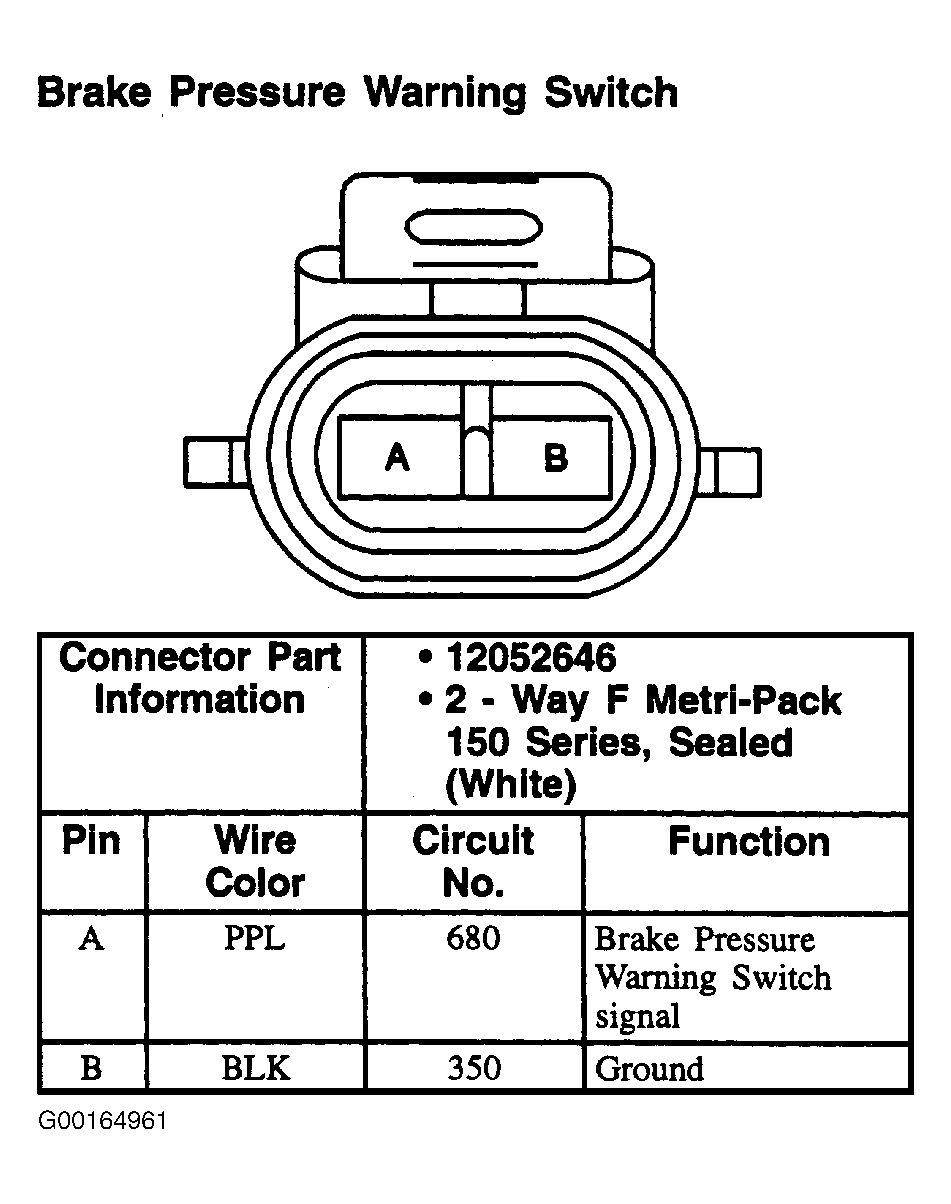

Fig 1: Brake Pressure Warning Switch - 2-Pin Connector, White
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
