Home >> GMC >> 1997 >> Jimmy 4D Utility, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> C100 To C603 >> C103

C100 To C603: C103

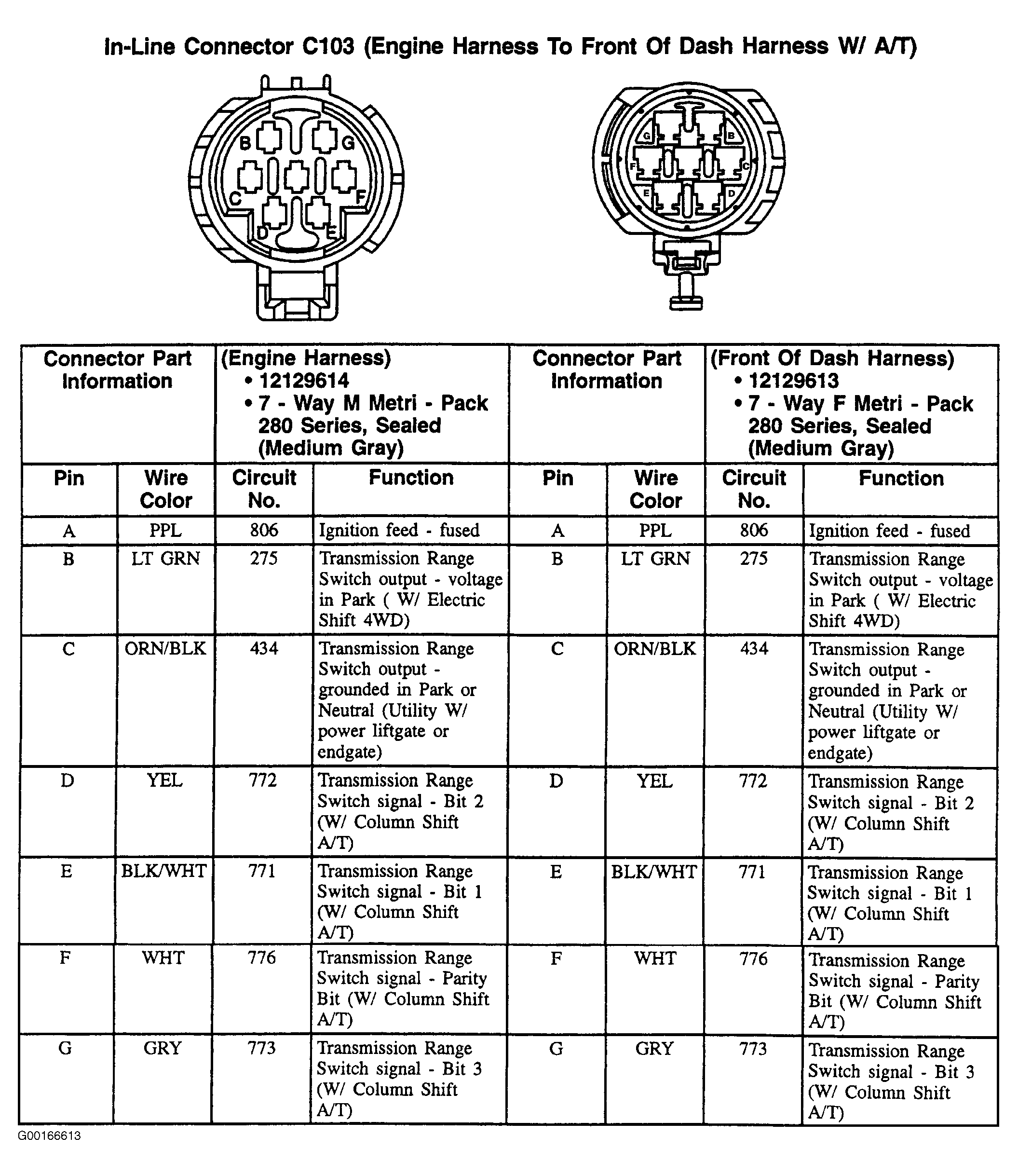

Fig 1: C103 - 7-Pin Connector, Medium Gray

G00166613

Courtesy of GENERAL MOTORS CORP.
