C100 To C603: C108

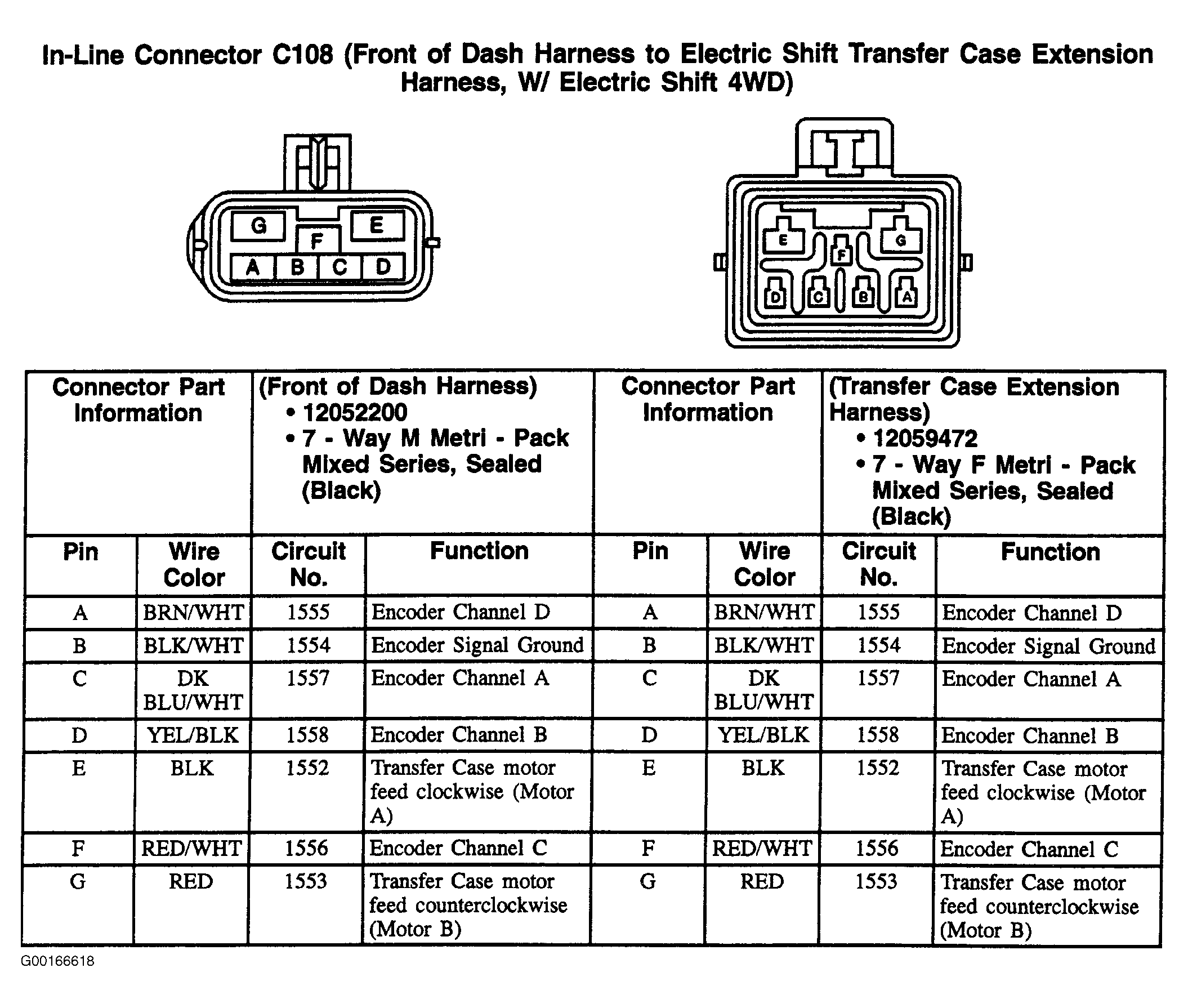

Fig 1: C108 - 7-Pin Connector, Black

G00166618

Courtesy of GENERAL MOTORS CORP.
