C100 To C603: C117

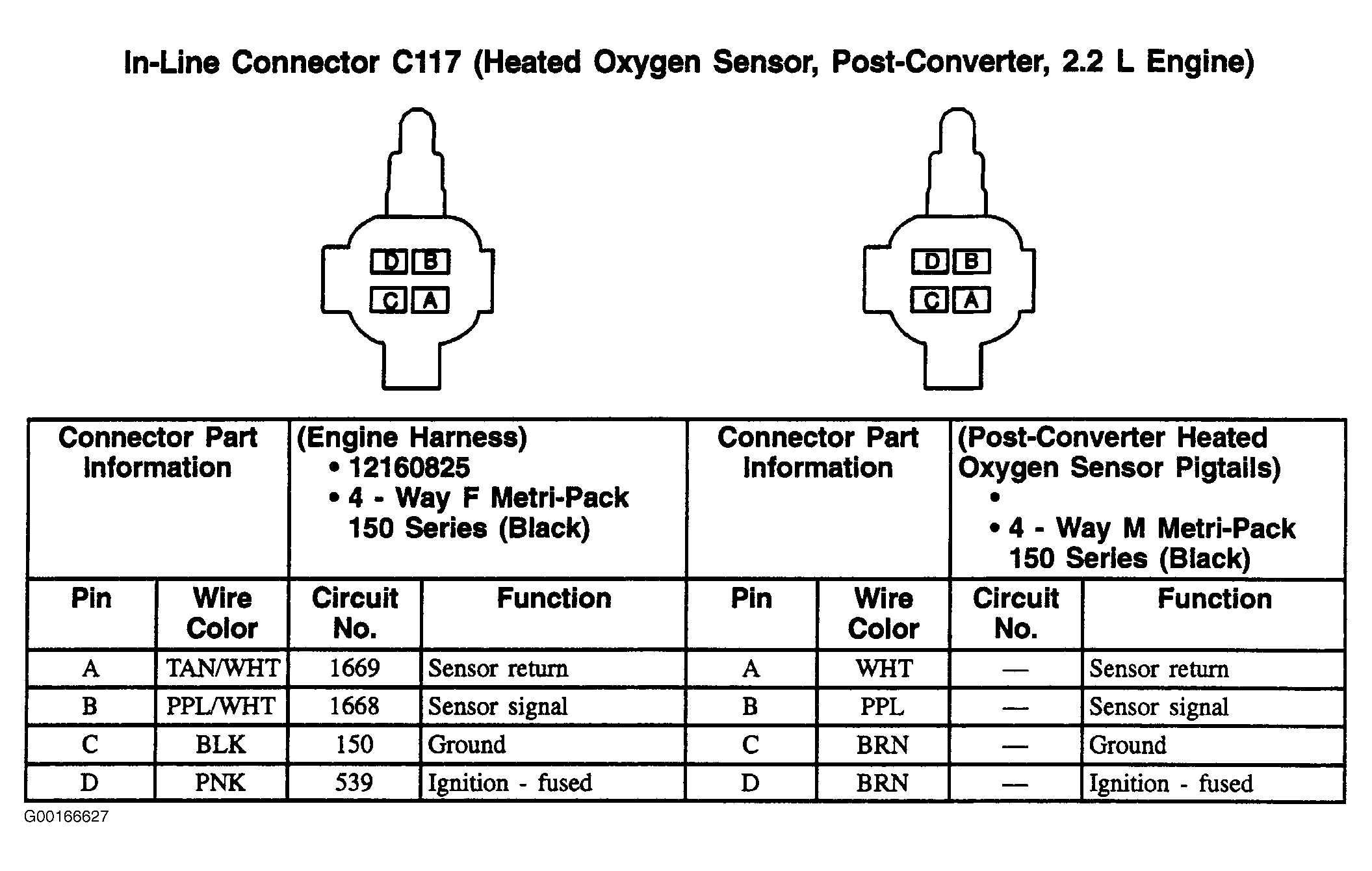

Fig 1: C117 - 4-Pin Connector, Black

G00166627

Courtesy of GENERAL MOTORS CORP.
