Home >> GMC >> 1997 >> Jimmy 4D Utility, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> C100 To C603 >> C214

C100 To C603: C214

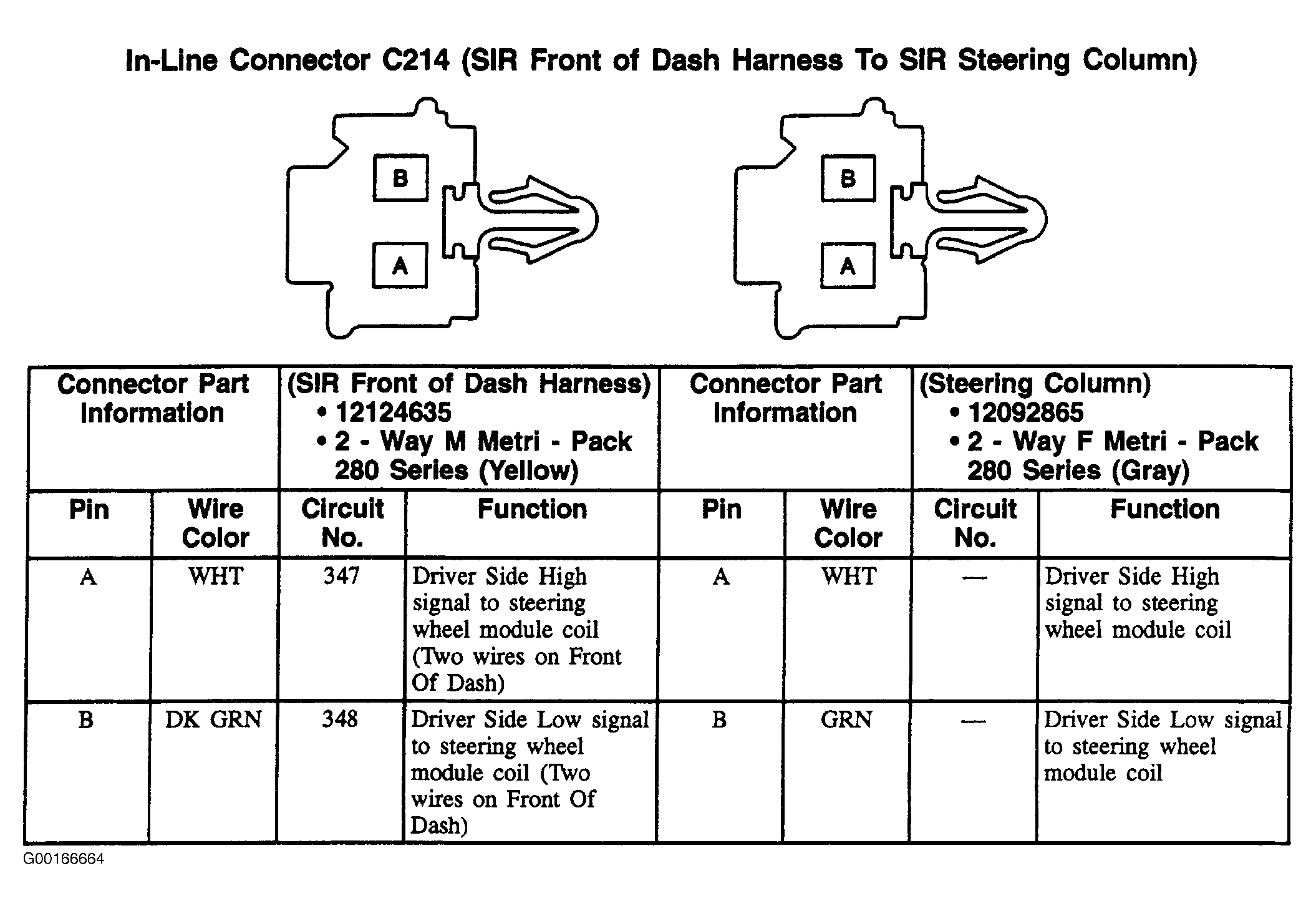

Fig 1: C214 - 2-Pin Connector, Yellow/Gray

G00166664

Courtesy of GENERAL MOTORS CORP.
