C100 To C603: C415

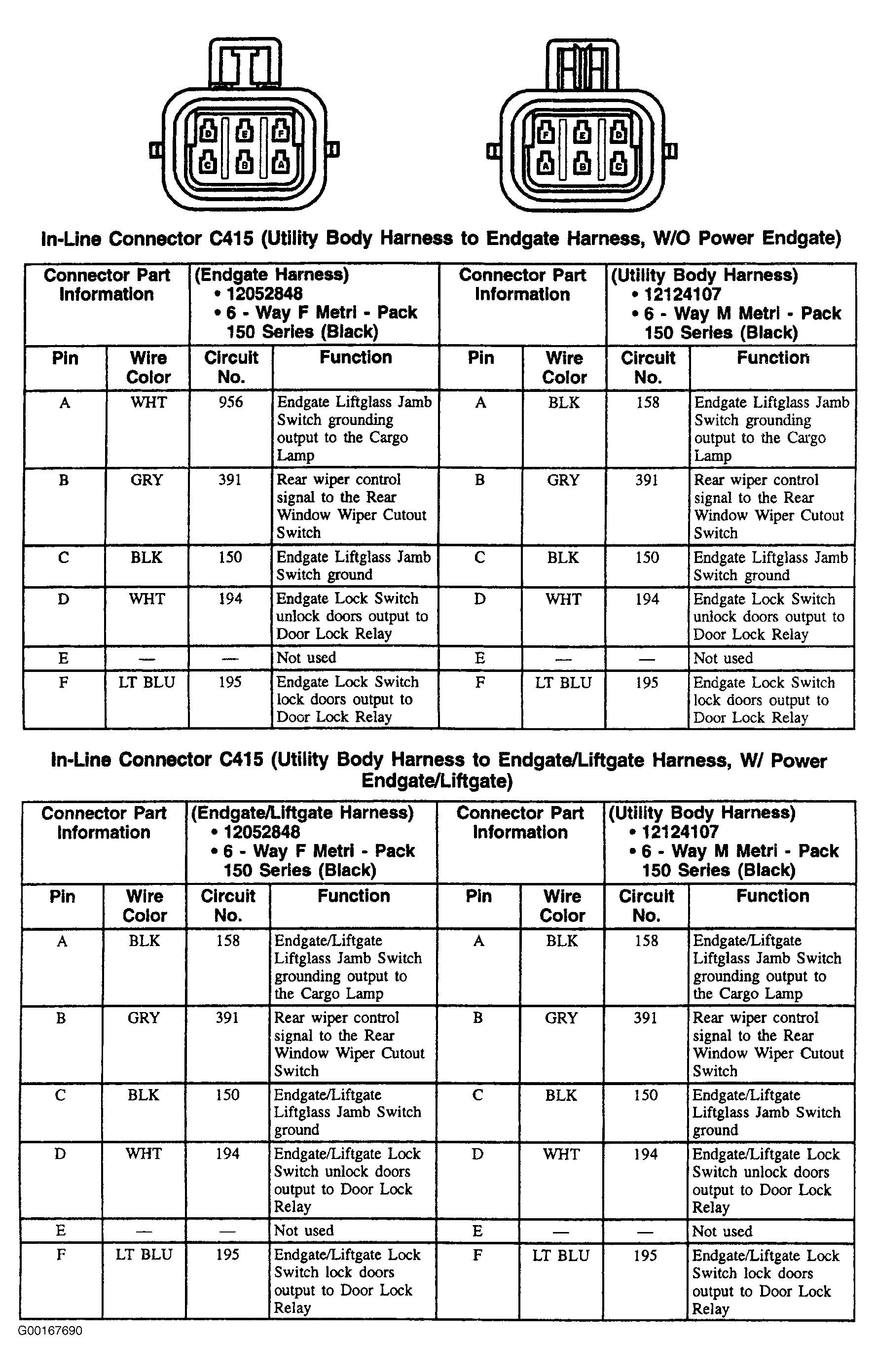

Fig 1: C415 - 6-Pin Connector, Black

G00167690

Courtesy of GENERAL MOTORS CORP.
