Home >> GMC >> 1997 >> Jimmy 4D Utility, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> C100 To C603 >> C600

C100 To C603: C600

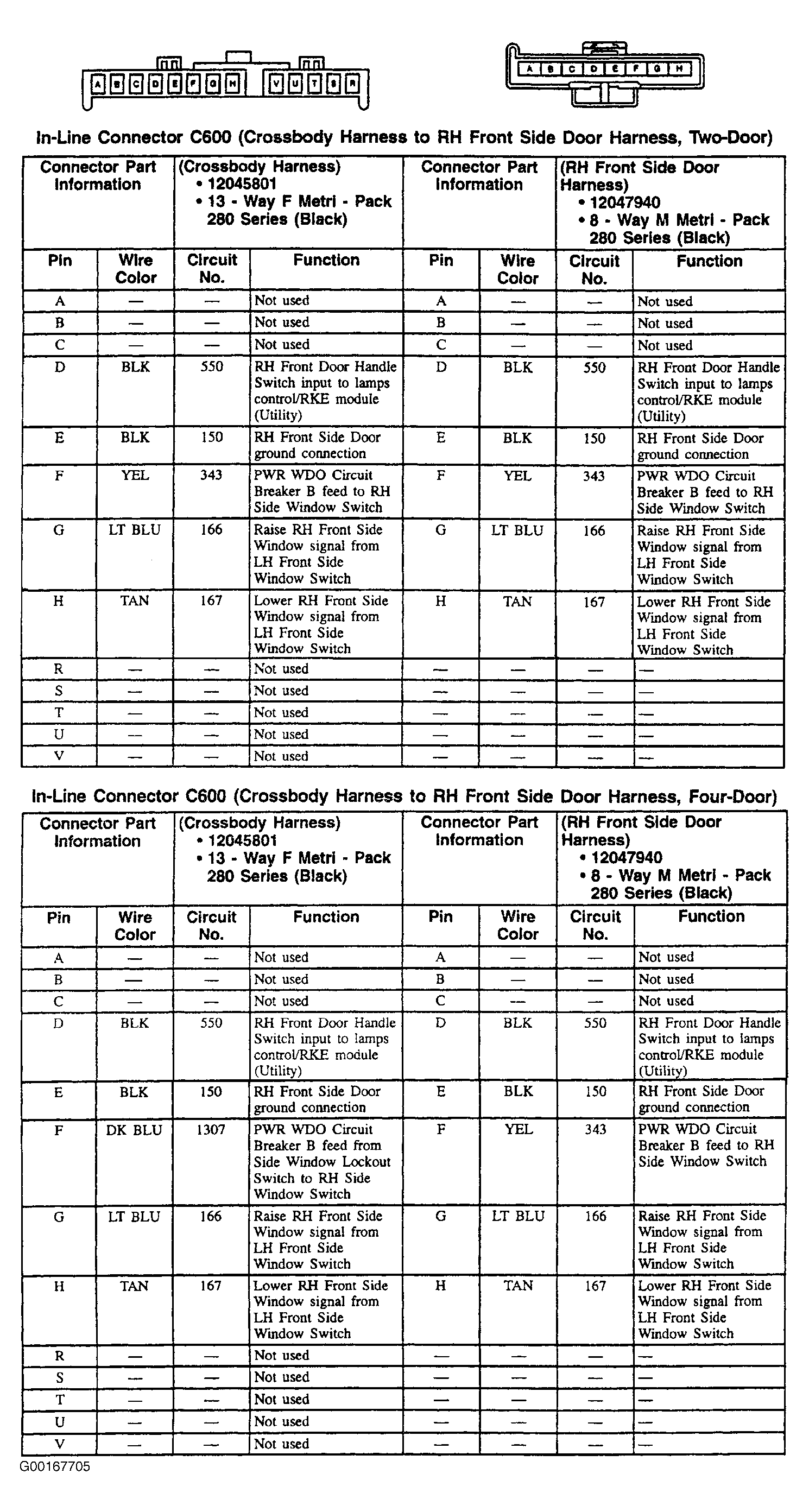

Fig 1: C600 - 13-Pin/8-Pin Connector, Black

G00167705

Courtesy of GENERAL MOTORS CORP.
