Connector Terminal Identification
>>
Console Courtesy Lamp
Console Courtesy Lamp

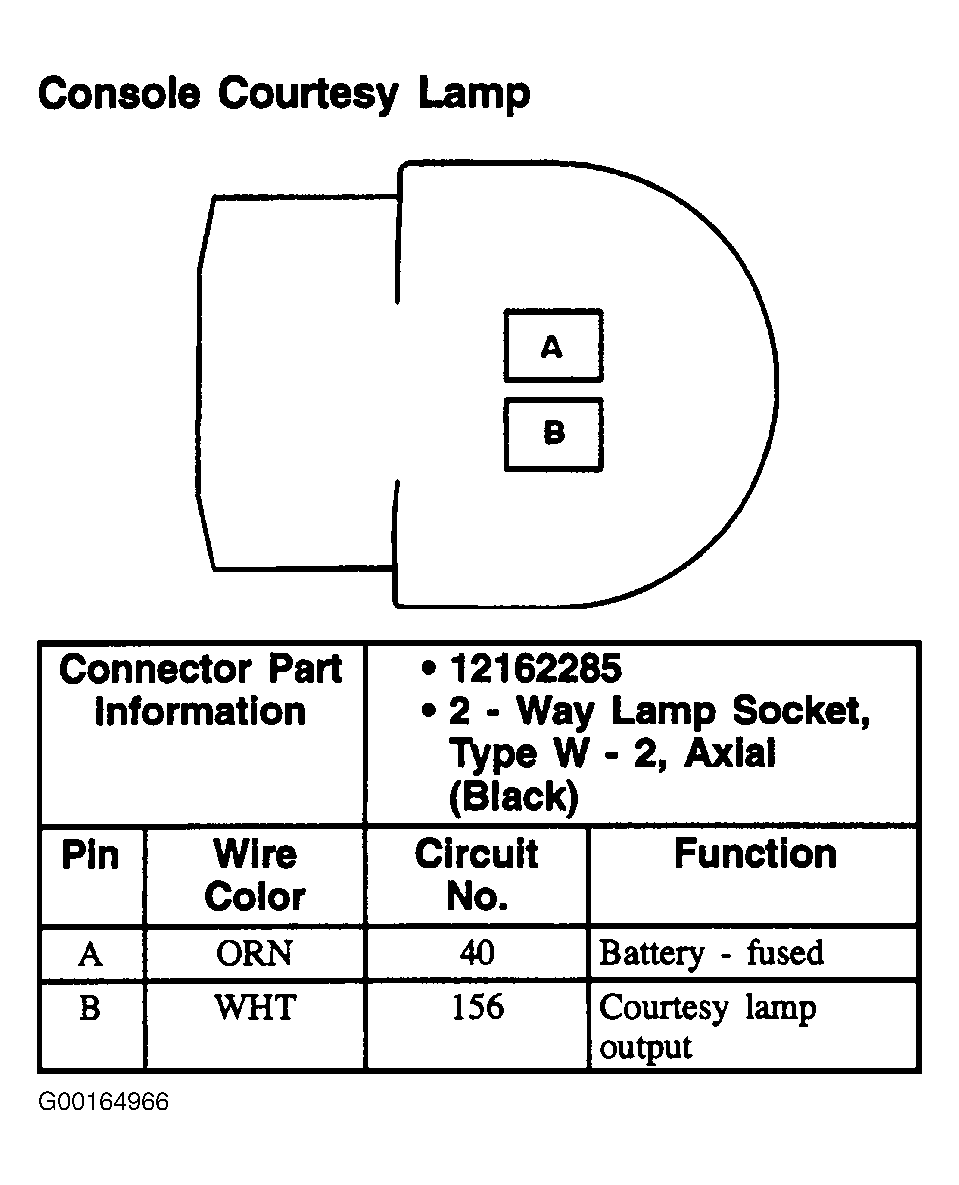

Fig 1: Console Courtesy Lamp - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
