Home >> GMC >> 1997 >> Jimmy 4D Utility, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Connector Terminal Identification >> Daytime Running Lamps Control Module

Daytime Running Lamps Control Module

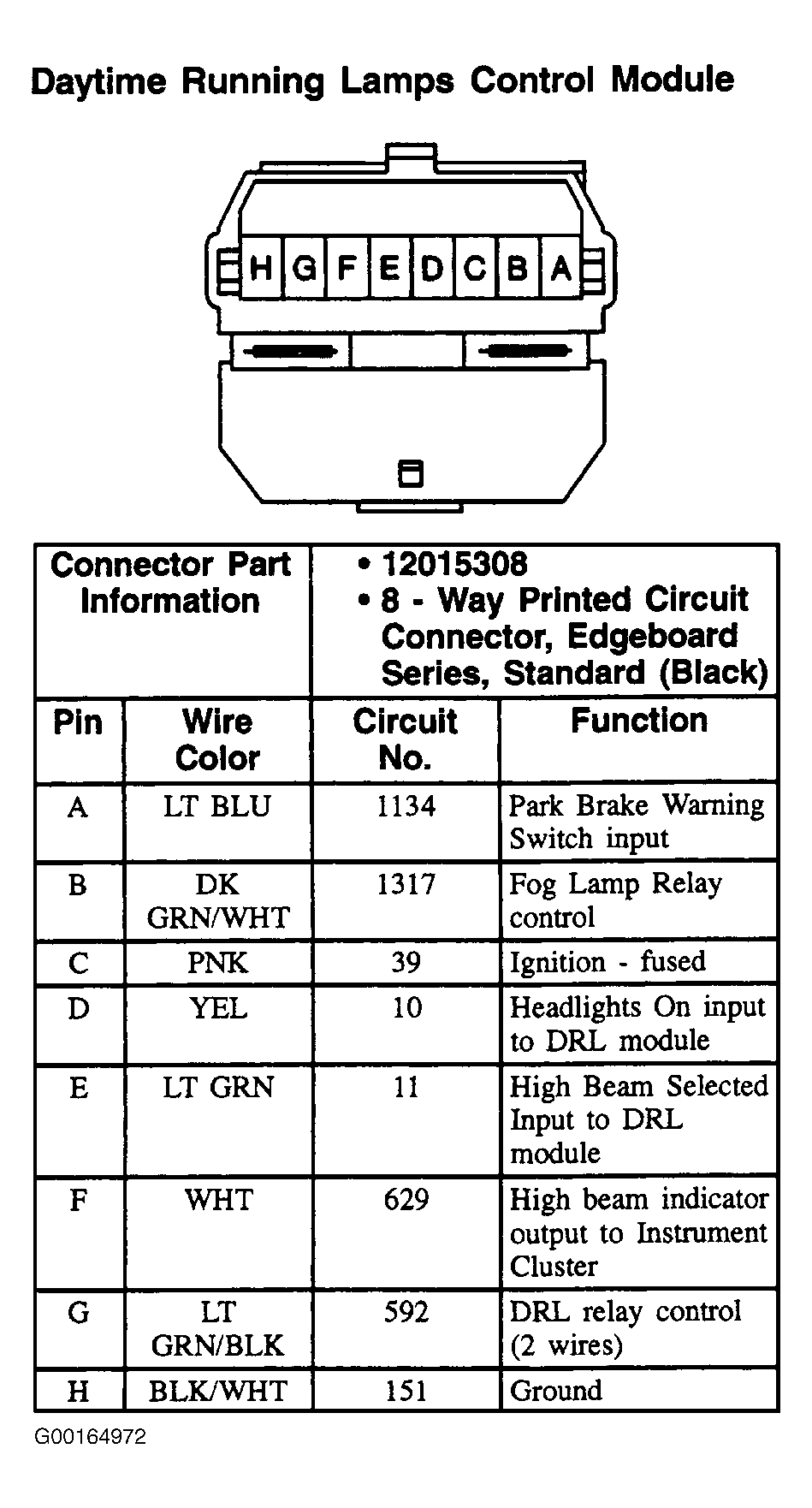

Fig 1: Daytime Running Lamps Control Module - 8-Pin Connector, Black

G00164972

Courtesy of GENERAL MOTORS CORP.
