Connector Terminal Identification
>>
ENDGATE Lock Switch
ENDGATE Lock Switch

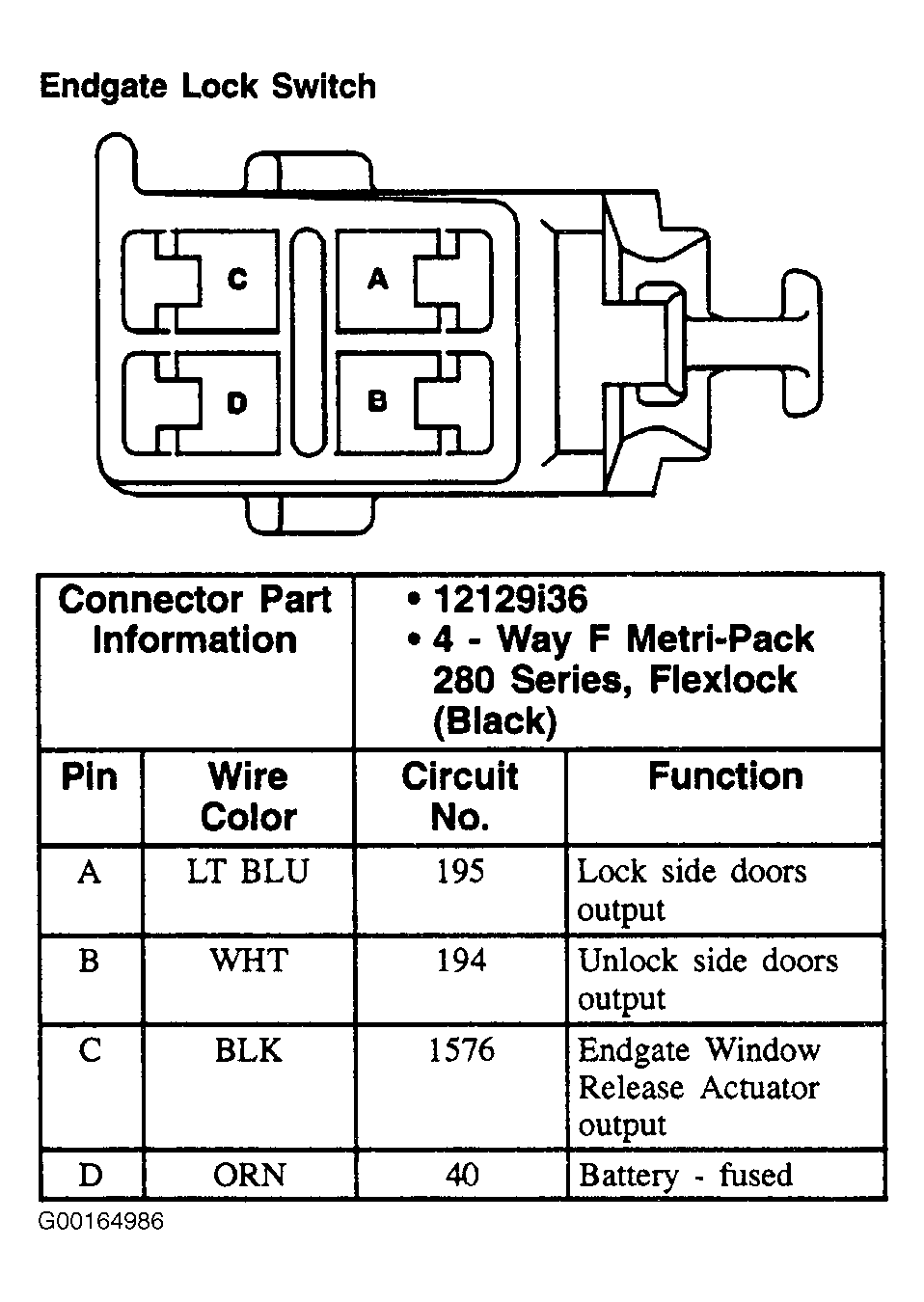

Fig 1: Endgate Lock Switch - 4-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
